DISCONTINUED Klutch Arc Welder | 10-200 Amp Output

Discontinued

Professional Klutch® ST201iDV Dual Voltage TIG/Stick DC welder with High Frequency, inverter, and PFC (Power Factor Correction) Technology. Dual Voltage power allows for welding with 120V/230V, DC weld output for welding mild steel, stainless steel, cast iron and hard surfacing materials. Lightweight inverter technology is excellent for portable welding. PFC (Power Factor Correction) for increased performance on 120V Stick up to 120A output for welding with 1/8in electrodes. High Frequency start for easy and contamination-free starting.

SKU: 96583

Manufacturer Part Number: 96583

Brand: Klutch

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, inventory, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits

Click Image to Enlarge

Videos

Features + Benefits
Applications
Specifications
Videos

Lightweight inverter technology is ideal for portable welding
PFC (Power Factor Correction) for increased performance
High frequency for easier, contaminate-free arc starts
Simple-to-use front panel interface for easy setup and adjustments
Welds mild steel, stainless steel, cast iron, and hard surfacing materials
TIG: 120V 10-130A; 230V 10-200A
STICK: 120V 20-120A (welds with 1/8in electrode); 230V 20-180A

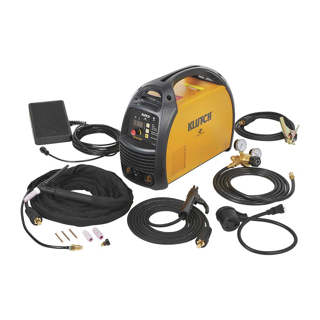

What's Included: (1) 200A HF DC TIG/Stick power source(1) 13ft. TIG Torch(1) 10ft. electrode holder with cable(1) 10ft. ground cable with clamp(1) 6ft. gas hose(1) Dual gauge regulator(2) Extra collets(1) Long cap(1) Short cap(1) Sample Tungsten

Ideal for Welding Mild Steel, Stainless Steel, Cast Iron, and Hard Surfacing Materials for Projects Around the Farm, Garage, Shop, Warehouse, and More

Product Specifications

Equipment Type	Welder (Arc)
Amperage Adjustments	10-200
Amps	200
Cable Length	10 Electrode; 13 Tig Torch
Cord Length	6.5 Ft.; 2 Adapter Plug
Country of Origin	Made in the USA (with US and imported components)
Dimensions	20.67 In. L X 11.02 In. W X 15.16 In. H
Dry Weight	44.2 Lbs
Duty Cycle	25% At 130a; 30% At 200a
Electrode Size	1/16 - 5/32 In.
Material Compatibility	Mild Steel, Stainless Steel, Cast Iron, Hard Surfacing Materials
Range Selection	10-200
SKU	96583.KLU
Voltage	120/230
Weld Thickness	5/16 In.
