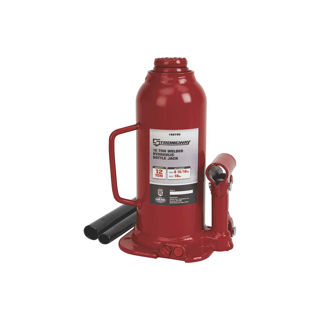

Strongway Hydraulic Bottle Jack | 12-Ton | Welded Base

This powerful, heavy-duty Strongway® 12 Ton Hydraulic Bottle Jack with Welded Base features a high-quality glide-action pressure pump designed for hard-hitting commercial use, making large loads easy to lift. This jack is also lightweight and ideal for lifting farm vehicles, heavy-duty machinery, industrial construction equipment and more. Meets and complies with ASME PASE 2019 safety standards.

SKU: 88709

Manufacturer Part Number: 88709

Brand: Strongway

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, inventory, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits

Click Image to Enlarge

Videos

Features + Benefits
Specifications
Videos

Welded base does not leak oil or other fluid
Constructed of high-grade steel and built to exacting standards for quality and durability
Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
Paint is oil, grease and dirt-resistant for easy cleanup
High-quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
Piston-ram is treated and polished to resist skiving
Piston-ram utilizes a Y-Style polyurethane sealing ring with back-up ring, preventing load from falling slowly or bypassing oil drift
Hydraulic pump is constructed of QT450 Nodular Iron which has a higher strength than other types of iron resulting in greater durability
Hydraulics are powered with a high-quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures between 40 degrees F and 105 degrees F
Knurled heat-treated pad with 3 1/8in. screw height adjustment for versatility
Lifting handle is sectional and connects quickly making storage easier
Convenient steel carrying handle makes it easy to transport the jack
Wide, rugged base adds stability and strength
Built in ISO certified facilities and engineered using the same systems as Aerospace Technologies and the Automotive OEM sector
Meets and complies with ASME PASE 2019 safety standards

Product Specifications

Equipment Type	Jack (Bottle)
Dry Weight	13.22 Lbs
Lift Capacity	12 Tons Lift
Lift Height	8-5/16 In. Min; 18 In. Max.
Operation	Oil Hydraulic
Screw Top Adjustment	3-1/8 In.
SKU	88709.STR
Travel	9-1/6 In. Ram

Product Specifications

Equipment Type	Jack (Bottle)
Dry Weight	13.22 Lbs
Lift Capacity	12 Tons Lift
Lift Height	8-5/16 In. Min; 18 In. Max.
Operation	Oil Hydraulic
Screw Top Adjustment	3-1/8 In.
SKU	88709.STR
Travel	9-1/6 In. Ram
