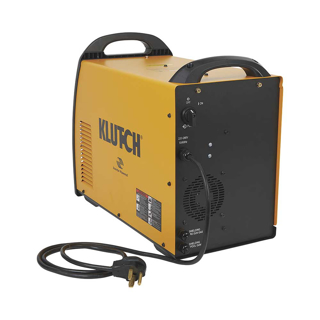

Klutch Multiprocess Welder | 15-250 Amp Output

Discontinued

The Klutch® Multi-Process Welder with MIG Torch and Lift Start TIG Torch features LCD interface control that allows easy welder setup, taking away the guesswork by automatically choosing preset welding parameters that best match the information that is entered and offering the ability to fine-tune parameters to meet your needs. This multi-process welder offers superb versatility, performing a variety of welding processes on metals up to 1/2in. thick from a single unit. Includes MIG torch and TIG torch. Optional spool gun and stick electrode holder sold separately.
SKU: 96578
Manufacturer Part Number: 96578
Brand: Klutch
As a consumer, I wish to purchase, rent, or service this product at the nearest retail store, rental center, or service shop.
As a reseller, rental center owner, or manufacturer, I want to partner with GNE to include this product in my store inventory, rental fleet, or OEM product offerings.

Buy More, Save More

QtyYour Cost
({{unit_of_measure}})
Limited-Time Savings
({{unit_of_measure}})
Now Only
({{unit_of_measure}})
Order Now to Get Your Best Price Today
Features and Benefits
Click Image to Enlarge
Videos
  • Delivers up to 250 Amp DC weld output
  • MIG Weld: steel, stainless steel and aluminum; Flux Core Weld: steel; DC Stick Weld: steel, stainless steel and cast iron (with optional purchase of Stick Electrode Holder - Item# 96729, sold separately); TIG Weld: steel and stainless steel
  • Duty Cycle: 20% @ 250 Amps
  • Dual gas valves provide easy setup changes from one welding process to another
  • Optional 10ft. spool gun (Item# 44453, sold separately) easily handles aluminum and other tough-to-feed wires
  • LCD control for easy welder setup
  • Operates on 230V, 45 Amp primary input draw for maximum output
  • Includes 10ft. ground clamp and cable, 10ft. MIG torch, 13ft. lift start TIG torch, 2 dual gauge regulators and 2 gas hoses
  • Handles 0.023in., 0.030in., 0.035in., 0.045in. dia. welding wire
  • Shielding gas required for MIG welding
  • Measures 26.25in.L x 12.25in.W x 16.25in.H
Ideal for Welding Steel, Stainless Steel, Aluminum, and Cast Iron for Projects Around the Farm, Garage, Shop, Warehouse, and More
Product Specifications
Equipment TypeWelder (Multiprocess)
Amps45
Cable Length10-ft. Clamp Cable
Cord Length6 Ft.
Country of OriginMade in the USA (with US and imported components)
Dimensions26.25 In. L X 12.25 In. W X 16.25 In. H
Dry Weight86.42 Lbs
Duty Cycle20% At 250a
Material CompatibilityMig; Steel, Stainless Steel, Aluminum; Flux Core; Steel; Dc Stick; Steel, Stainless Steel, Cast Iron; Tig: Steel, Stainless Steel
OutputMin: 15 Amps, Max 250 Amps
SKU96578.KLU
Voltage230
Weld Thickness1/2 In.
Wire Capacity/Length0.045 In. Max Diameter
Product Specifications
Equipment TypeWelder (Multiprocess)
Amps45
Cable Length10-ft. Clamp Cable
Cord Length6 Ft.
Country of OriginMade in the USA (with US and imported components)
Dimensions26.25 In. L X 12.25 In. W X 16.25 In. H
Dry Weight86.42 Lbs
Duty Cycle20% At 250a
Material CompatibilityMig; Steel, Stainless Steel, Aluminum; Flux Core; Steel; Dc Stick; Steel, Stainless Steel, Cast Iron; Tig: Steel, Stainless Steel
OutputMin: 15 Amps, Max 250 Amps
SKU96578.KLU
Voltage230
Weld Thickness1/2 In.
Wire Capacity/Length0.045 In. Max Diameter
