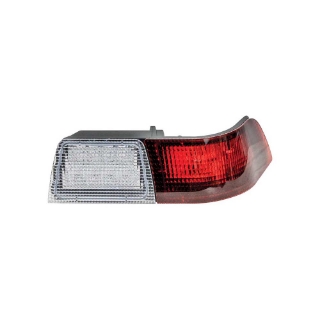

Tiger Lights Case IH MX Series Magnum LED Rear Red Corner/White Tail Light | Right-Hand

This complete plug and play replacement LED light is for the rear right-hand lower cab tail light on Case IH® MX Series Magnum tractors. Save yourself time and money with LED Lights that are IP68 rated so that no dust will get in your light and your light can be fully and continuously submerged in water, but there will be no side effects. These lights have filters that will eliminate unwanted radio and electromagnetic frequencies from external sources. Their die-cast aluminum housing/heatsink gives them long-lasting durability for a high quality and long service life. Aluminum housing is specifically designed to dissipate heat away from the internal electronics, which increases light output and improves performance. This light is designed to handle any severe environmental condition. This LED light features a durable polycarbonate lens, it is built to be RoHS compliant, and comes with stainless steel hardware. The color of light LEDs emit is near the color spectrum of the mid-day sun and allows the human eye to function and view objects better to improve your work environment.
SKU: 2552
Manufacturer Part Number: TL6140R
Brand: Tiger Lights
As a consumer, I wish to purchase, rent, or service this product at the nearest retail store, rental center, or service shop.
As a reseller, rental center owner, or manufacturer, I want to partner with GNE to include this product in my store inventory, rental fleet, or OEM product offerings.

Buy More, Save More

QtyYour Cost
({{unit_of_measure}})
Limited-Time Savings
({{unit_of_measure}})
Now Only
({{unit_of_measure}})
Order Now to Get Your Best Price Today
Please Note: This light will bolt right into the factory light housing. This light has a built in resistor to work with original factory flasher.
Features and Benefits
  • Tiger Lights TL6140R Light
  • Red flashing/flood beam pattern
  • Red light watts: 17W + 12W resistor
  • Red light: 2.4 amp draw
  • White light: 3,000 effective lumens
  • White light: 8 LEDs
  • White light: 30 watts
  • White light: 3.3 amp draw
  • Input voltage: 12-Volt to 24-Volt
  • Plug and play wiring for easy install
  • Left-hand light available but sold separately
  • Includes connectors and hardware
  • Replaces the factory bulb and housing of the right-hand rear lower cab corner red tail light with attached white work light
  • Tiger Lights TL6140R Light
  • Red flashing/flood beam pattern
  • Red light watts: 17W + 12W resistor
  • Red light: 2.4 amp draw
  • White light: 3,000 effective lumens
  • White light: 8 LEDs
  • White light: 30 watts
  • White light: 3.3 amp draw
  • Input voltage: 12-Volt to 24-Volt
  • Plug and play wiring for easy install
  • Left-hand light available but sold separately
  • Includes connectors and hardware
  • Replaces the factory bulb and housing of the right-hand rear lower cab corner red tail light with attached white work light
Case IH® MX Series Magnum Tractors: MX180, MX200, MX220, MX240, MX270

Replaces Case IH ® Part Number: 279221A1
Product Specifications
Equipment TypeLED Light
Product Specifications
Equipment TypeLED Light
