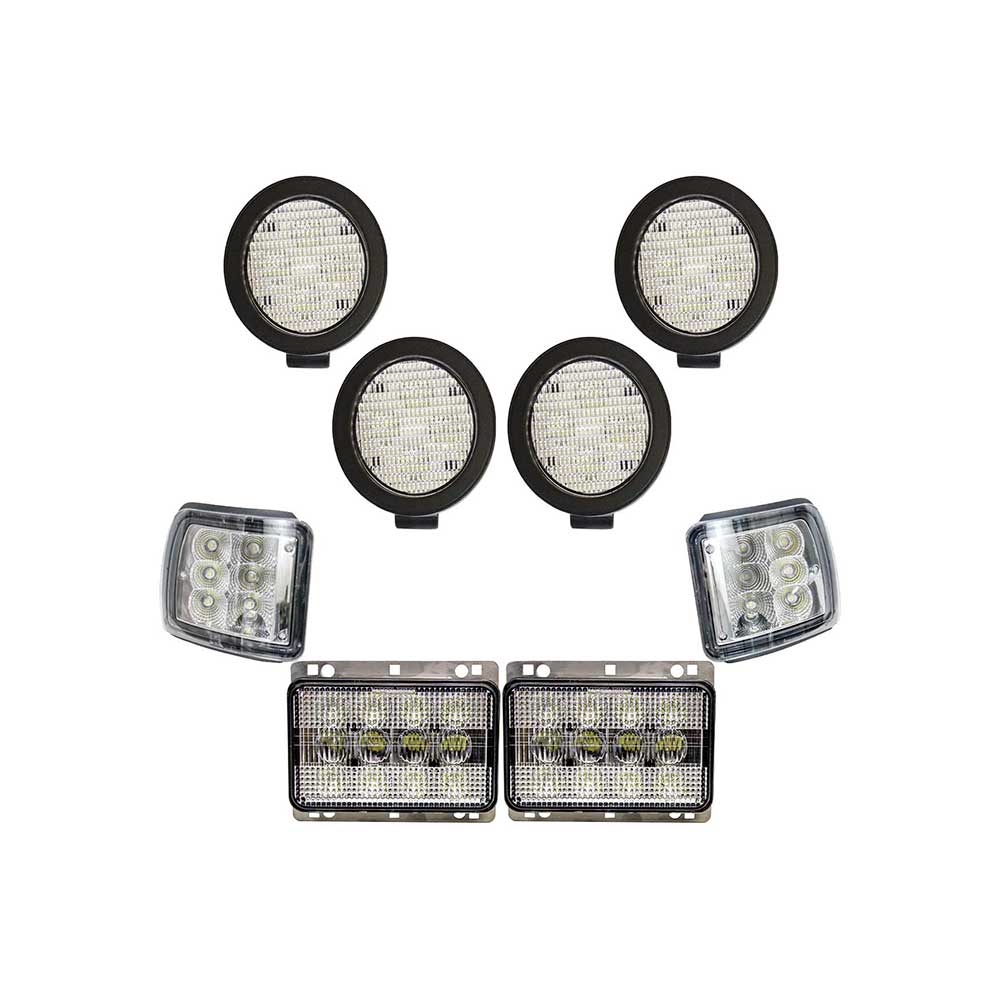

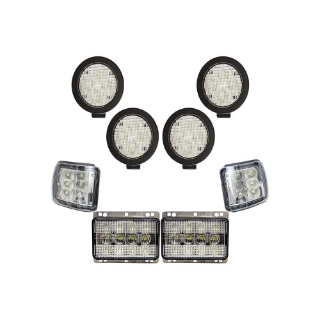

Tiger Lights Complete John Deere 6015-6020-6030-6L-7030 Series LED Light Kit

Use this complete plug and play replacement LED Light Kit for all Hood and Front or Rear Upper Cab Lights on John Deere® 6015, 6020, 6030, 6L or 7030 Series tractors. Save yourself time and money with LED Lights that are IP68 rated so that no dust will get in your light and your light can be fully and continuously submerged in water, but there will be no side effects. These lights have filters that will eliminate unwanted radio and electromagnetic frequencies from external sources. Their die-cast aluminum housing/heatsink gives them long-lasting durability for a high quality and long service life. Aluminum housing is specifically designed to dissipate heat away from the internal electronics, which increases light output and improves performance. This light is designed to handle any severe environmental condition. This LED Light features a durable polycarbonate lens, it is built to be RoHS compliant, and comes with stainless steel hardware. The color of light LEDs emit is near the color spectrum of the mid-day sun and allows the human eye to function and view objects better to improve your work environment.
SKU: 2694
Manufacturer Part Number: JDKIT-10
Brand: Tiger Lights
As a consumer, I wish to purchase, rent, or service this product at the nearest retail store, rental center, or service shop.
As a reseller, rental center owner, or manufacturer, I want to partner with GNE to include this product in my store inventory, rental fleet, or OEM product offerings.

Buy More, Save More

QtyYour Cost
({{unit_of_measure}})
Limited-Time Savings
({{unit_of_measure}})
Now Only
({{unit_of_measure}})
Order Now to Get Your Best Price Today
Please Note: Some tractors use a 3-pin electrical connector, please check the lights on your tractor before ordering.
Features and Benefits
  • Tiger Lights JDKIT-10 Light Kit
  • Flood or flood/spot beam pattern
  • 25,800 effective lumens
  • 280 watts
  • 27.8 amp draw
  • Input voltage: 12-Volt to 24-Volt
  • Plug and play wiring for easy install
  • Use original mount and wiring
  • Kit includes: 8 lights (2 outer hood, 2 inner hood and 4 front or rear upper cab lights), connectors, adapters and hardware
  • Left-Hand Outer Hood Light Features (PN: 2595 - TL7130L Light):1 LED light is 4.75-in. x 4.75-in. x 5.25-in. (W x H x D)
  • Flood beam pattern
  • 3,000 effective lumens
  • 6 LEDs
  • 30 watts
  • 2.5 amp draw
  • Plug and play wiring for easy install
  • Right-Hand Outer Hood Light Features (PN: 2596 - TL7130R Light):1 LED light is 4.75-in. x 4.75-in. x 5.25-in. (W x H x D)
  • Flood beam pattern
  • 3,000 effective lumens
  • 6 LEDs
  • 30 watts
  • 2.5 amp draw
  • Plug and play wiring for easy install
  • Inner Hood Light - Hi/Lo Features (PN: 2816 - TL6420 Light):2 LED lights are 6-in. x 4-in. (W x H)
  • Flood/spot beam pattern
  • 3,500 effective lumens
  • 12 LEDs
  • 60 watts
  • 5 amp draw
  • Plug and play wiring for easy install
  • Fender, Handrail and Rear Upper Cab Light Features (PN: 3121 - TL5670 Light):4 LED lights are 4.25-in. x 4.5-in. x 3-in. (W x H x D)
  • Flood beam pattern
  • 3,200 effective lumens
  • 4 LEDs
  • 40 watts
  • 3.2 amp draw
  • Plug and play wiring for easy install
  • Bolts into factory bracket
  • Replaces all hood and upper cab lights (2 outer hood, 2 inner hood and 4 front or rear upper cab lights)
  • Available Options:Extra LED Work Light (PN: 3121) - kit only includes 4 and some tractors will need additional work lights
  • Tiger Lights JDKIT-10 Light Kit
  • Flood or flood/spot beam pattern
  • 25,800 effective lumens
  • 280 watts
  • 27.8 amp draw
  • Input voltage: 12-Volt to 24-Volt
  • Plug and play wiring for easy install
  • Use original mount and wiring
  • Kit includes: 8 lights (2 outer hood, 2 inner hood and 4 front or rear upper cab lights), connectors, adapters and hardware
  • Left-Hand Outer Hood Light Features (PN: 2595 - TL7130L Light):1 LED light is 4.75-in. x 4.75-in. x 5.25-in. (W x H x D)
  • Flood beam pattern
  • 3,000 effective lumens
  • 6 LEDs
  • 30 watts
  • 2.5 amp draw
  • Plug and play wiring for easy install
  • Right-Hand Outer Hood Light Features (PN: 2596 - TL7130R Light):1 LED light is 4.75-in. x 4.75-in. x 5.25-in. (W x H x D)
  • Flood beam pattern
  • 3,000 effective lumens
  • 6 LEDs
  • 30 watts
  • 2.5 amp draw
  • Plug and play wiring for easy install
  • Inner Hood Light - Hi/Lo Features (PN: 2816 - TL6420 Light):2 LED lights are 6-in. x 4-in. (W x H)
  • Flood/spot beam pattern
  • 3,500 effective lumens
  • 12 LEDs
  • 60 watts
  • 5 amp draw
  • Plug and play wiring for easy install
  • Fender, Handrail and Rear Upper Cab Light Features (PN: 3121 - TL5670 Light):4 LED lights are 4.25-in. x 4.5-in. x 3-in. (W x H x D)
  • Flood beam pattern
  • 3,200 effective lumens
  • 4 LEDs
  • 40 watts
  • 3.2 amp draw
  • Plug and play wiring for easy install
  • Bolts into factory bracket
  • Replaces all hood and upper cab lights (2 outer hood, 2 inner hood and 4 front or rear upper cab lights)
  • Available Options:Extra LED Work Light (PN: 3121) - kit only includes 4 and some tractors will need additional work lights
John Deere® 6015, 6020, 6030, 6L and 7030 Series Tractors:
  • 6015 Series: 6215, 6415, 6615, 6715
  • 6020 Series: 6120, 6220, 6420
  • 6030 Series: 6230, 6330, 6430
  • 6L Series: 6120L, 6220L, 6320L, 6420L, 6520L
  • 7030 Series: 7130, 7230, 7330
