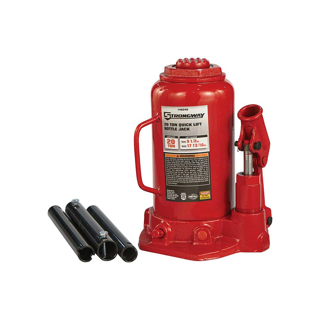

Strongway Hydraulic Quick Lift Bottle Jack | 20-Ton

This Strongway® 20-Ton Hydraulic Quick Lift Bottle Jack is a compact yet powerful jack featuring an oversized pump piston to safely lift loads 6 times faster than traditional bottle jacks. Designed to greatly reduce operator fatigue and speed up work efficiency. Meets ASME PALD 2009 standard.

SKU: 46240

Manufacturer Part Number: 46240

Brand: Strongway

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, inventory, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits

Click Image to Enlarge

Videos

Features + Benefits
Applications
Specifications
Videos

Innovative design lifts loads 6 times faster than traditional bottle jacks
Constructed of high-grade steel and built to exacting standards for quality and durability
Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
Paint is oil, grease and dirt-resistant for easy cleanup
High-quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
Piston-ram is treated and polished to resist skiving
Piston-ram utilizes a Y-Style polyurethane sealing ring with backup ring, preventing load from falling slowly or bypassing oil drift
Hydraulic pump is constructed of QT450 Nodular Iron which has a higher strength than other types of iron resulting in greater durability
Hydraulics are powered with a high quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures between 40 degrees F and 105 degrees F
Knurled heat-treated pad with 2 5/16in. screw adjustment provides versatility
Lifting handle is sectional and connects quickly making storage easier
Convenient steel carrying handle makes it easy to transport the jack Integrated bypass and overload valves for extra protection
Wide base adds stability
Built in ISO certified facilities and engineered using the same systems as Aerospace Technologies and the Automotive OEM sector
Meets ASME PALD 2009 standard

Ideal for Quickly Raising Up Vehicles Around the Farm, Garage, Shop, Warehouse, and More

Product Specifications

Equipment Type	Jack (Bottle)
Lift Capacity	20 Tons Lift
Lift Height	9-1/2 In. Min; 17-13/16 In. Max.
Operation	Manual
Screw Top Adjustment	2-5/16 In.
SKU	46240.STR
Travel	6 In. Ram

Product Specifications

Equipment Type	Jack (Bottle)
Lift Capacity	20 Tons Lift
Lift Height	9-1/2 In. Min; 17-13/16 In. Max.
Operation	Manual
Screw Top Adjustment	2-5/16 In.
SKU	46240.STR
Travel	6 In. Ram
