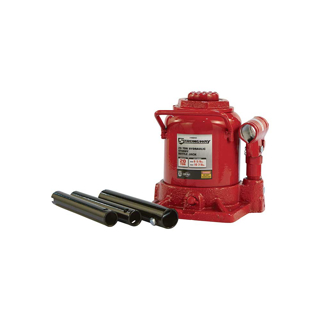

Strongway Hydraulic Low-Profile Bottle Jack | 20-Ton

This Strongway™ 20-Ton Hydraulic Low-Profile Bottle Jack is ideal for low profile requirements where normal bottle jacks just won't fit. Designed for vertical lifting requirements in automotive and ag repair shops, on loading docks, in industrial environments, on factory floors and more. Not for use where sideways or downward force is required. Meets ASME PALD 2009 standard.

SKU: 46241

Manufacturer Part Number: 46241

Brand: Strongway

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, inventory, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits

Click Image to Enlarge

Videos

Features + Benefits
Applications
Specifications
Videos

Constructed of high-grade steel and built to exacting standards for quality and durability
Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
Paint is oil, grease and dirt-resistant for easy cleanup
High-quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
Piston-ram is treated and polished to resist skiving
Piston-ram utilizes a Y-Style polyurethane sealing ring with backup ring, preventing load from falling slowly or bypassing oil drift
Hydraulic pump is constructed of QT450 Nodular Iron which has a higher strength than other types of iron resulting in greater durability
Hydraulics are powered with a high quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures between 40 degrees F and 105 degrees F
Knurled heat-treated pad with 1-1/4 in. screw adjustment for versatility
Lifting handle is sectional and connects quickly making storage easier
Convenient steel carrying handle makes it easy to transport the jack
Wide base adds stability
Built in ISO certified facilities and engineered using the same systems as Aerospace Technologies and the Automotive OEM sector
Meets ASME PALD 2009 standard

Ideal for Quickly Raising Up Vehicles Around the Farm, Garage, Shop, Warehouse, and More

Product Specifications

Equipment Type	Jack (Bottle)
Dry Weight	20.71 Lbs
Lift Capacity	20 Tons Lift
Lift Height	6-5/8 In. Min; 10-7/8 In. Max.
Operation	Manual
Screw Top Adjustment	1-1/4 In.
SKU	46241.STR
Travel	3 In. Ram

Product Specifications

Equipment Type	Jack (Bottle)
Dry Weight	20.71 Lbs
Lift Capacity	20 Tons Lift
Lift Height	6-5/8 In. Min; 10-7/8 In. Max.
Operation	Manual
Screw Top Adjustment	1-1/4 In.
SKU	46241.STR
Travel	3 In. Ram
