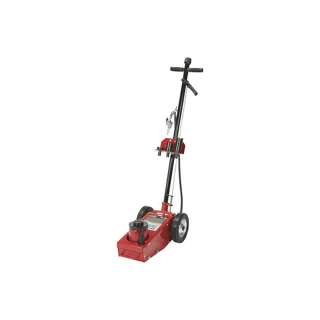

Strongway 22-Ton Quick-Lift Air/Hydraulic Service Floor Jack

Discontinued

This pneumatic heavy-duty Strongway 22-ton quick-lift air/hydraulic service floor jack has a powerful air motor to lift heavy loads. A quick-lift system allows the lifting ram to contact the load faster. The compact design easily fits between dual tandem axles. Ideal for lifting axles, farm vehicles, heavy-duty machinery, industrial equipment, and more. Includes one each ¾-in., 2 ¼-in., and 4-in. height adapters. Some assembly is required. Meets and complies with ASME PASE 2019 safety standards.

SKU: 46248

Manufacturer Part Number: 46248

Brand: Strongway

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, inventory, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits

Click Image to Enlarge

Videos

Features + Benefits
Applications
Specifications
Videos

Constructed of high-grade steel and built to exacting standards for quality and durability
Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
Paint is oil, grease, and dirt-resistant for easy cleanup
High-quality large-diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
Piston-ram is treated and polished to resist skiving
Piston-ram utilizes a Y-Style polyurethane sealing ring with a backup ring, preventing load from falling slowly or bypassing oil drift
Hydraulic pump is constructed of QT450 Nodular Iron which has a higher strength than other types of iron, resulting in greater durability
Hydraulics are powered with high-quality oil, which offers better corrosion resistance and high/low-temperature flexibility, allowing the unit to operate at temperatures between 40 degrees and 105 degrees Farenheit
Efficient trigger pushbutton control reduces lifting time
Built-in bypass hydraulic system prevents accidental overloading
Mechanical spring ram return automatically resets the ram back to the minimum starting height
Three-position pumping handle makes it easy to reach under vehicles with low overhangs
Large 8-in. rear wheels provide easy positioning and portability
Extra-long T-handle for easy positioning and moving
21.73-in. x 12.44-in. base adds stability
Rated air pressure: 100 to 120 PSI
8 to 12 CFM @ 90 PSI required
44,000 lb. rated capacity
Built in ISO-certified facilities and engineered using the same systems as Aerospace Technologies and the Automotive OEM sector
Meets and complies with ASME PASE 2019 safety standards
