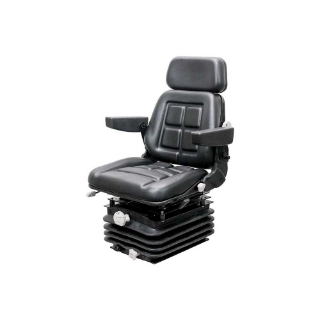

Pilot | Seat & Mechanical Suspension Kit | Case IH 5100 Maxxum | Black Vinyl | 6543

Upgrade a Case IH® 5100 Series Maxxum tractor with this Pilot seat kit, a complete mechanical suspension seat assembly built for comfort and durability. This direct-fit replacement is designed to reduce operator fatigue and absorb shock, making long hours in the field more manageable. Built to fit select equipment applications, it offers a reliable solution at an affordable cost.

SKU: 6543

Manufacturer Part Number: 6543

Brand: Pilot

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, inventory, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits

Durable black vinyl covering
Mechanical suspension
Removable headrest for custom comfort
Vacuum formed cushions add comfort and durability
Seat cushion width of 17.75 in.
Seat index point of 1.38 in.
Extendable and foldable backrest with angle adjustment
Adjustable mechanical lumbar support to help prevent lower back pain
Fold-up armrests
Seat belt fixation points for added safety
Comes with a swivel
Adjustable slide rails with 8.25 in. of travel
Suspension travel of 4 in.
Manual weight adjustment of 286 lbs.
2.75 in. stroke reducer
Durable suspension cover to keep components free of dirt and dust
Kit includes: Uni Pro 1004 mechanical suspension seat, swivel, mounting hardware, and installation instructions for easy setup

Frequently Asked Questions About This Product

Durable black vinyl covering
Mechanical suspension
Removable headrest for custom comfort
Vacuum formed cushions add comfort and durability
Seat cushion width of 17.75 in.
Seat index point of 1.38 in.
Extendable and foldable backrest with angle adjustment
Adjustable mechanical lumbar support to help prevent lower back pain
Fold-up armrests
Seat belt fixation points for added safety
Comes with a swivel
Adjustable slide rails with 8.25 in. of travel
Suspension travel of 4 in.
Manual weight adjustment of 286 lbs.
2.75 in. stroke reducer
Durable suspension cover to keep components free of dirt and dust
Kit includes: Uni Pro 1004 mechanical suspension seat, swivel, mounting hardware, and installation instructions for easy setup

Case IH® 5100 Series Maxxum Tractor: 5120, 5130, 5140, 5220, 5230, 5240, 5250

Product Specifications

Equipment Type	Mechanical Suspension Seat
Adjustable Backrest	Yes
Armrests	Yes
Color	Black
Frame	Steel
Lumbar Support	Yes
Material	Vinyl
Slide Rails	Yes
Swivel	Yes

Product Specifications

Equipment Type	Mechanical Suspension Seat
Adjustable Backrest	Yes
Armrests	Yes
Color	Black
Frame	Steel
Lumbar Support	Yes
Material	Vinyl
Slide Rails	Yes
Swivel	Yes
