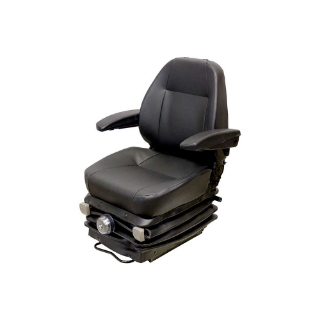

Uni Pro Caterpillar/Deere Construction Equipment 502 Mechanical Susp. Seat Kit | Black Vinyl

Stay comfortable through long hours on the job with this Uni Pro 502 mechanical suspension seat kit. This high-quality replacement seat and suspension kit is designed to fit select Caterpillar® construction equipment and John Deere® dozers requiring a 15 in. mounting pattern. Available with either an air or mechanical suspension, it delivers reliable support and vibration reduction in the most demanding work environments.

SKU: 6862

Manufacturer Part Number: 6862

Brand: Uni Pro

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, inventory, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits

Durable black vinyl covering for long-lasting wear and easy maintenance
Heavy-duty mechanical suspension with 4 springs and 4 in. vertical suspension stroke
Adjustable backrest for personalized comfort and support
Built-in lumbar support to help prevent lower back pain
Adjustable fold-up armrests for easy seat access and added convenience
Document pouch to store manuals and other valuables
2.4 in. seat height/tilt adjustment for ergonomic positioning
Weight adjustment range of 176 - 330 lbs. for a customized ride
Slide rails with 7.9 in. fore/aft adjustment in 0.39 in. increments
Durable suspension cover to keep components free of dirt and dust
Seat dimensions: 19.3 in. wide × 32.1 in. high
Complies with safety standards, including: seat belt conforms to ISO 6683, SAE J386, and ISO 3776 (with anchorage strength of 3,372 lbs.), seat meets EM1, EM3, EM4, EM5, EM6, and EM8 specifications, and ISO 7096 vibration isolation compliance
Kit includes: Uni Pro 502/KAB 525 mechanical suspension seat, KAB adapter plate, mounting hardware, and installation instructions for easy setup

Features + Benefits
Applications
Specifications
Videos

Durable black vinyl covering for long-lasting wear and easy maintenance
Heavy-duty mechanical suspension with 4 springs and 4 in. vertical suspension stroke
Adjustable backrest for personalized comfort and support
Built-in lumbar support to help prevent lower back pain
Adjustable fold-up armrests for easy seat access and added convenience
Document pouch to store manuals and other valuables
2.4 in. seat height/tilt adjustment for ergonomic positioning
Weight adjustment range of 176 - 330 lbs. for a customized ride
Slide rails with 7.9 in. fore/aft adjustment in 0.39 in. increments
Durable suspension cover to keep components free of dirt and dust
Seat dimensions: 19.3 in. wide × 32.1 in. high
Complies with safety standards, including: seat belt conforms to ISO 6683, SAE J386, and ISO 3776 (with anchorage strength of 3,372 lbs.), seat meets EM1, EM3, EM4, EM5, EM6, and EM8 specifications, and ISO 7096 vibration isolation compliance
Kit includes: Uni Pro 502/KAB 525 mechanical suspension seat, KAB adapter plate, mounting hardware, and installation instructions for easy setup

Ideal for Caterpillar® Excavators, Integrated Tool Carriers, Motor Graders, Pipelayers, Scrapers, Track Dozers and Wheel Loaders, and John Deere® Dozers:

Caterpillar® Excavators, Integrated Tool Carriers, Motor Graders, Pipelayers, Scrapers, Track Dozers and Wheel Loaders:

Excavators: 312L, 320L, 322L, 325L, 330L
Integrated Tool Carriers: IT14G, IT18B, IT18F, IT24F, IT28B, IT28F, IT28G, IT38F, IT38G, IT62G, IT62H
Motor Graders: 12G, 12H, 14G, 14H, 14M, 16G, 16H, 16M, 24H, 24M, 120G, 120H, 120M, 135H, 140G, 140H, 140M, 143H, 160H, 160M, 163H
Pipelayers: 561N, 572R, 583R, 583T, 587R, 587T
Scrapers: 613G, 615G, 621B, 621E, 621G, 623B, 623E, 623G, 627B, 627E, 627G, 631C, 631D, 631E, 631G, 633G, 637C, 637D, 637E, 637G, 651E, 651G, 657E, 657G
Track Dozers: D3G, D4G, D5G, D5M, D5N, D6H, D6M, D6N, D6R, D7H, D7R, D8N, D8R, D8T, D9N, D9R, D9T, D10N, D10R, D10T, D11N, D11R, D11T
Wheel Loaders: 914G, 924, 924F, 924G, 928F, 928G, 928H, 930G, 936E, 936F, 938F, 938G, 938H, 950E, 950F, 950G, 950H, 962G, 962H, 966C, 966D, 966E, 966F, 966G, 966H, 970F, 972G, 972H, 980C, 980F, 980G, 980H, 988B, 988F, 988G, 988H, 990, 990H, 992C, 992D, 992G, 994F, 994G

Replaces Caterpillar® Excavator Part Numbers: 4l-7052, 5l-3649
Replaces Caterpillar® Integrated Tool Carrier Part Numbers: 219-8096, 219-8094, 248-6194
Replaces Caterpillar® Motor Grader Part Numbers: 219-8096, 200-3814, 238-6683, 241-1077, 243-6740, 302-8813, 302-8814, 6G3520, 8X2352, 8Y3911
Replaces Caterpillar® Pipelayer Part Numbers: 159-2950, 160-7186
Replaces Caterpillar® Scraper Part Numbers: 284-5895, 300-5533, 284-5903
Replaces Caterpillar® Track Dozer Part Numbers: 159-2950, 159-2951, 160-7186, 220-8634, 200-3174, 261-7484, 261-7533
Replaces Caterpillar® Wheel Loader Part Numbers: 219-8096, 200-3174, 191-2996, 219-8094, 248-6193, 248-6194, 219-8090, 219-8091

John Deere® Dozers: 450G, 450H, 450J, 450J LGP, 455G, 550G, 550H, 550J, 550J LGP, 550K, 555G, 605K, 650G, 650H, 650J, 650J LGP, 650K, 650K LGP, 655K, 700H, 700J, 700K, 750C, 750C-II, 750J, 750K, 755K, 850C, 850C-II, 850J, 850JR, 850K

Replaces John Deere® Dozer Part Numbers: AT226693, AT424635, AT226684, AT209259, AT424634, AT226694, AT424636, AT226688

Product Specifications
