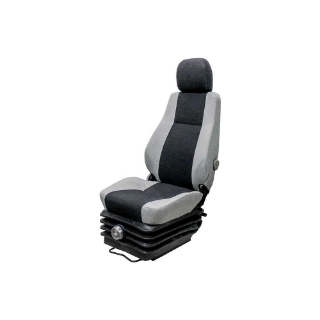

KAB | 514 | Seat & Mechanical Suspension Kit | Caterpillar Construction Equipment | 6863

Stay comfortable through long hours on the job with this KAB mechanical suspension seat kit. This high-quality replacement seat and suspension kit is designed to fit select Caterpillar® construction equipment requiring a 15 in. mounting pattern. This seat delivers reliable support and vibration reduction in the most demanding work environments.

SKU: 6863

Manufacturer Part Number: 6863

Brand: KAB

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, inventory, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits

Heavy-duty multi-gray Cordura fabric covering
2-spring mechanical suspension
Backrest angle adjustment for individual fit
Contoured foam cushions to ensure operator comfort
5-position lumbar support to help prevent lower back pain
110 - 265 lb. weight adjustment
4 in. vertical suspension stroke
Seat height and tilt adjustment of 2.5 in. on right side of suspension
Adjustable slide rails with 8 in. of travel in 0.4 in. increments
Durable suspension cover to keep components free of dirt and dust
Vibration performance meets ISO 7096 specifications
Seat meets EM1, EM3, EM4, EM5, EM6 and EM8 specifications
Kit includes: Uni Pro 1020/KAB 514 mechanical suspension seat, KAB CAT adapter plate, mounting hardware, and installation instructions for easy setup

Frequently Asked Questions About This Product

Heavy-duty multi-gray Cordura fabric covering
2-spring mechanical suspension
Backrest angle adjustment for individual fit
Contoured foam cushions to ensure operator comfort
5-position lumbar support to help prevent lower back pain
110 - 265 lb. weight adjustment
4 in. vertical suspension stroke
Seat height and tilt adjustment of 2.5 in. on right side of suspension
Adjustable slide rails with 8 in. of travel in 0.4 in. increments
Durable suspension cover to keep components free of dirt and dust
Vibration performance meets ISO 7096 specifications
Seat meets EM1, EM3, EM4, EM5, EM6 and EM8 specifications
Kit includes: Uni Pro 1020/KAB 514 mechanical suspension seat, KAB CAT adapter plate, mounting hardware, and installation instructions for easy setup

Ideal for Caterpillar® Excavators, Integrated Tool Carriers, Motor Graders, Pipelayers, Rigid Dump Trucks, Scrapers, Track Dozers and Wheel Loaders:

Excavators: 312L, 320L, 322L, 325L, 330L

Replaces Caterpillar® Excavator Part Numbers: 4l-7052, 5l-3649

Integrated Tool Carriers: IT14G, IT18B, IT18F, IT24F, IT28B, IT28F, IT28G, IT38F, IT38G, IT62G, IT62H

Replaces Caterpillar® Integrated Tool Carrier Part Numbers: 219-8096, 219-8094, 248-6194

Motor Graders: 12G, 12H, 14G, 14H, 14M, 16G, 16H, 16M, 24H, 24M, 120G, 120H, 120M, 135H, 140G, 140H, 140M, 143H, 160H, 160M, 163H

Replaces Caterpillar® Motor Grader Part Numbers: 219-8096, 200-3814, 238-6683, 241-1077, 243-6740, 302-8813, 302-8814, 6G3520, 8X2352, 8Y3911

Pipelayers: 561N, 572R, 583R, 583T, 587R, 587T

Replaces Caterpillar® Pipelayer Part Numbers: 159-2950, 160-7186

Rigid Dump Trucks (Off Highway): 769D, 770, 771D, 772, 773D, 773E, 773F, 775D, 775E, 775F, 776C, 776D, 777C, 777D, 777F, 784B, 784C, 785B, 785C, 789B, 789C, 793B, 793C, 793D, 797, 797B

Replaces Caterpillar® Rigid Dump Truck Part Numbers: 180-7310, 200-3172, 219-8093, 224-2677, 228-3351, 240-8716, 244-2803, 252-9713

Scrapers: 613G, 615G, 621B, 621E, 621G, 623B, 623E, 623G, 627B, 627E, 627G, 631C, 631D, 631E, 631G, 633G, 637C, 637D, 637E, 637G, 651E, 651G, 657E, 657G

Replaces Caterpillar® Scraper Part Numbers: 284-5895, 300-5533, 284-5903

Track Dozers: D3G, D4G, D5G, D5M, D5N, D6H, D6M, D6N, D6R, D7H, D7R, D8N, D8R, D8T, D9N, D9R, D9T, D10N, D10R, D10T, D11N, D11R, D11T

Replaces Caterpillar® Track Dozer Part Numbers: 159-2950, 159-2951, 160-7186, 220-8634, 200-3174, 261-7484, 261-7533

Wheel Loaders: 914G, 924, 924F, 924G, 928F, 928G, 928H, 930G, 936E, 936F, 938F, 938G, 938H, 950E, 950F, 950G, 950H, 962G, 962H, 966C, 966D, 966E, 966F, 966G, 966H, 970F, 972G, 972H, 980C, 980F, 980G, 980H, 988B, 988F, 988G, 988H, 990, 990H, 992C, 992D, 992G, 994F, 994G

Replaces Caterpillar® Wheel Loader Part Numbers: 191-2996, 200-3174, 219-8090, 219-8091, 219-8094, 219-8096, 248-6193, 248-6194

Product Specifications

Equipment Type	Mechanical Suspension Seat
Adjustable Backrest	Yes
Color	Gray
Frame	Steel
Lumbar Support	Yes
Material	Fabric
Slide Rails	Yes

Product Specifications

Equipment Type	Mechanical Suspension Seat
Adjustable Backrest	Yes
Color	Gray
Frame	Steel
Lumbar Support	Yes
Material	Fabric
Slide Rails	Yes
