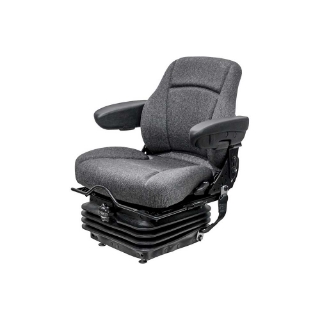

Uni Pro Caterpillar Equipment/Deere Dozer 425 Mechanical Suspension Seat Kit | Gray Fabric

Stay comfortable through long hours on the job with this Uni Pro 425 mechanical suspension seat kit. This high-quality replacement seat and suspension kit is designed to fit select Caterpillar® construction equipment and John Deere® dozers requiring a 15 in. mounting pattern. Available with either an air or mechanical suspension, it delivers reliable support and vibration reduction in the most demanding work environments.
SKU: 6881
Manufacturer Part Number: 6881
Brand: Uni Pro
As a consumer, I wish to purchase, rent, or service this product at the nearest retail store, rental center, or service shop.
As a reseller, rental center owner, or manufacturer, I want to partner with GNE to include this product in my store inventory, rental fleet, or OEM product offerings.

Buy More, Save More

QtyYour Cost
({{unit_of_measure}})
Limited-Time Savings
({{unit_of_measure}})
Now Only
({{unit_of_measure}})
Order Now to Get Your Best Price Today
Features and Benefits
  • Durable charcoal gray fabric covering for long-lasting performance
  • Mechanical suspension with 3 in. suspension stroke to absorb shocks and vibrations
  • Ergonomically contoured foam cushions for enhanced operator comfort
  • Adjustable backrest angle for a customized fit
  • Adjustable fold-up armrests for easy seat access and added convenience
  • 2 in. internal height adjustment for personalized positioning
  • Weight adjustment to accommodate different operators
  • Internal tethers for added durability and safety
  • Double-locking slide rails for secure fore/aft adjustment
  • Rubber molded suspension cover to protect components from dust and dirt
  • Kit includes: Uni Pro 425/Sears 5027 mechanical suspension seat, adapter plate, and installation instructions for easy setup
  • Durable charcoal gray fabric covering for long-lasting performance
  • Mechanical suspension with 3 in. suspension stroke to absorb shocks and vibrations
  • Ergonomically contoured foam cushions for enhanced operator comfort
  • Adjustable backrest angle for a customized fit
  • Adjustable fold-up armrests for easy seat access and added convenience
  • 2 in. internal height adjustment for personalized positioning
  • Weight adjustment to accommodate different operators
  • Internal tethers for added durability and safety
  • Double-locking slide rails for secure fore/aft adjustment
  • Rubber molded suspension cover to protect components from dust and dirt
  • Kit includes: Uni Pro 425/Sears 5027 mechanical suspension seat, adapter plate, and installation instructions for easy setup
Ideal for Caterpillar® Articulated Dump Trucks, Dozers, Excavators, Integrated Tool Carriers, Landfill Compactors, Large Wheel Loaders, Medium Wheel Loaders, Motor Graders, Rigid Dump Trucks, Scrapers, Track Dozers, Track Loaders, and Wheel Loaders, and John Deere® Dozers:

  • Articulated Dump Trucks (Retain Wire Harness Connector from OEM Seat): 725, 730, 735, 740, D350, D350D, D350E, D400, D400D, D400E
Replaces Caterpillar® Articulated Dump Truck Part Numbers: 149-0092, 200-3173, 230-3393, 279-2300, 279-2301

  • Caterpillar® Dozers: D3C, D3C II, D3C III, D3C HST III, D3C XL, D3C LGP III, D3C LGP HST III, D3C XL III, D3C XL HST, D3C XL HST III, D3G LGP, D3K LGP, D3K XL, D4XL III, D4C HST III, D4C LGP, D4C LGP HST, D4C XL III, D4C XL HST III, D4C XL, D4G, D4G LP, D4G XL, D4H II, D4H LGP, D4H LGP II, D4H LGP III, D4H XL, D4H XL II, D4H XL III, D4K LGP, D4K XL, D5 XL, D5C, D5C III, D5C HST, D5C HST III, D5C LGP, D5C LGP III, D5C LGP HST, D5C LGP HST III, D5C XL, D5C XL II, D5C XL III, D5C XL HST, D5C XL HST III, D5G, D5G LGP, D5G XL, D5H LGP, D5H LGP II, D5H XL II, D5K, D5K LGP, D5K XL, D5M, D5M LGP, D5M XL, D5N, D5N LGP, D5N XL, D6H II, D6H LGP, D6H LGP II, D6H XL, D6H XL II, D6H XL LG II, D6K LGP, D6K XL, D6M, D6M LGP, D6M XL, D6N, D6N LGP, D6N LGP II, D6N XL, D6R, D6R II, D6R III, D6R DS XL II, D6R LGP, D6R LGP II, D6R LGP III, D6R LGP VP III, D6R XL, D6R XL II, D6R XL III, D6R XW, D6R XW II, D6R XW III, D6T LGP, D6T XL, D6T XW, D7H II, D7R, D7R II, D7R LGP, D7R LGP II, D7R XL, D7R XR, D7R XR II, D8R, D8R II, D8R II WDA, D8R WDA, D8T, D8T XL, D9R, D9T, D10R, D10R II, D10T, D11N, D11R
  • Excavators (Retain Wire Harness Connector from OE Seat): 312L, 320L, 322L, 325L, 330L
Replaces Caterpillar® Excavator Part Numbers: 4l-7052, 5l-3649

  • Integrated Tool Carriers (Retain Wire Harness Connector from OE Seat. 219-8094 has RH Seat Mounted Controls. Bracket Necessary to Make Fit. OE Seat May Have Seat Heater.): IT14G, IT18B, IT18F, IT24F, IT28B, IT28F, IT28G, IT38F, IT38G, IT62G, IT62H
Replaces Caterpillar® Integrated Tool Carrier Part Numbers: 219-8094, 219-8096, 248-6194

  • Landfill Compactors (Retain Wire Harness Connector from OE Seat. 191-2996 Seat has LH & RH Controls Connected to Seat. To Retrofit would Require Fab Work.): 815F, 816F, 824C, 825G, 825H, 826G, 826H, 834B, 836, 836G, 836H
Replaces Caterpillar® Landfill Compactor Part Numbers: 191-2996, 200-3174, 219-8091, 219-8092, 219-8096

  • Large Wheel Loaders: 988B, 988F, 988G, 988H, 990, 990H, 992C, 992D, 992G, 994F, 994G
Replaces Caterpillar® Large Wheel Loader Part Numbers: 200-3174, 219-8090, 219-8091

  • Medium Wheel Loaders (Retain Wire Harness Connector from OE Seat. 191-2996 and 248-6193 Seats have LH & RH Controls Connected. To Retrofit would Require Fab Work. OE Seats May have Seat Heaters): 914G, 924, 924F, 924G, 928F, 928G, 928H, 930G, 936E, 936F, 938F, 938G, 938H, 950E, 950F, 950G, 950H, 962G, 962H, 966C, 966D, 966F, 966E, 966G, 966H, 970F, 972G, 972H, 980C, 980F, 980G, 980H
Replaces Caterpillar® Medium Wheel Loader Part Numbers: 191-2996, 200-3174, 219-8092, 219-8094, 219-8095, 219-8096, 248-6193, 248-6194

  • Motor Graders (Retain Wire Harness Connector from OEM Seat: 12G, 12H, 14G, 14H, 14M, 16G, 16H, 16M, 24H, 24M, 120G, 120H, 120M, 135H, 140G, 140H, 140M, 143H, 160H, 160M, 163H
Replaces Caterpillar® Motor Grader Part Numbers: 200-3814, 219-8096, 238-6683, 241-1077, 243-6740, 302-8813, 302-8814, 6G3520, 8X2352, 8Y3911

  • Rigid Dump Trucks - Off-Highway (Retain Wire Harness Connector from OE Seat. OE Seat May Have 3-Point Seat Belt.): 769D, 770, 771D, 772, 773D, 773E, 773F, 775D, 775E, 775F, 776C, 776D, 777C, 777D, 777F, 784B, 784C, 785B, 785C, 789B, 789C, 793B, 793C, 793D, 797, 797B
Replaces Caterpillar® Rigid Dump Truck Part Number: 180-7310, 219-8093, 200-3172, 224-2677, 228-3351, 240-2803, 240-8716, 252-9713

  • Scrapers (Retain Wire Harness Connector from OE Seat. 219-8094 has RH Seat Mounted Controls. Bracket Necessary to Make Fit. OE Seay May have Seat Heater.): 613G, 615G, 621B, 621E, 621G, 623B, 623E, 623G, 627B, 627E, 627G, 631C, 631D, 631E, 631G, 633G, 637C, 637D, 637E, 637G, 651E, 651G, 657E, 657G
Replaces Caterpillar® Scraper Part Numbers: 284-5895, 284-5903, 300-5533

  • Track Dozers (Retain Wire Harness Connector from OEM Seat): D3G, D4G, D5G, D5M, D5N, D6H, D6M, D6N, D6R, D7H, D7R, D8N, D8R, D8T, D9N, D9R, D9T, D10N, D10R, D10T, D11N, D11R, D11T
Replaces Caterpillar® Track Dozer Part Numbers: 159-2950, 159-2951, 160-7186, 200-3174, 220-8634, 261-7484, 261-7533

  • Track Loaders (Retain Wire Harness Connector from OEM Seat. OEM Seat Does Not Have Arms and Has a Lateral Isolator.): 939C, 953C, 963C, 973C
Replaces Caterpillar® Track Loader Part Numbers: 227-9231, 227-9232

  • Wheel Loaders (Retain Wire Harness Connector from OE Seat. 191-2996 Seat has LH & RH Controls Connected. To Retrofit would Require Fab Work.): 814F, 824G, 824H, 834G, 834H, 844, 844H, 854G, 854K
Replaces Caterpillar® Wheel Loader Part Numbers: 191-2996, 200-3174, 219-8090, 219-8092, 219-8095, 219-8096

  • John Deere® Dozers: 450G, 450H, 450J, 450J LGP, 455G, 550G, 550H, 550J, 550J LGP, 550K, 555G, 605K, 650G, 650H, 650J, 650J LGP, 650K, 650K LGP, 655K, 700H, 700J, 700K, 750C, 750C-II, 750J, 750K, 755K, 850C, 850C-II, 850J, 850JR, 850K
Replaces John Deere® Dozer Part Numbers: AT226698, AT424640, AT226696
Product Specifications
Equipment TypeMechanical Suspension Seat Kit
Product Specifications
Equipment TypeMechanical Suspension Seat Kit
