Uni Pro Toyota 7F-8F-THDC Series Forklift Mechanical Suspension Seat | Black Vinyl

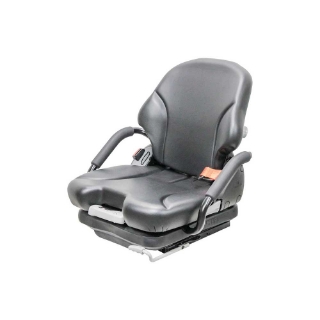

Picture of Uni Pro Toyota 7F-8F-THDC Series Forklift Mechanical Suspension Seat | Black Vinyl
The Uni Pro™ mechanical suspension seat is a high-quality, vibration-reducing seat designed for maximum comfort. It is a direct fit for Toyota® 7F-8F-THDC Series forklifts. This drop-in replacement offers forklift operators a superior, customizable ride, improving productivity and reducing fatigue during long shifts.
SKU: 8648
Manufacturer Part Number: 8648
Brand: Uni Pro
Find a Dealer
As a consumer, I wish to purchase, rent, or service this product at the nearest retail store, rental center, or service shop.
Become a GNE Customer
As a reseller, rental center owner, or manufacturer, I want to partner with GNE to include this product in my store inventory, rental fleet, or OEM product offerings.

Existing GNE customers, please for pricing, inventory, and to order.

Buy More, Save More

QtyYour Cost
({{unit_of_measure}})		Limited-Time Savings
({{unit_of_measure}})		Now Only
({{unit_of_measure}})
Order Now to Get Your Best Price Today
Please Note: Seat cushion must not touch vehicle in order to ensure reliable function in operator presence detector.

If you purchase the Replacement Backrest Kit (PN: 8466), you will lose the ability to have lumbar support and a backrest extension kit, unless you cut those parts out of your old backrest kit.
Features and Benefits
  • Durable black vinyl covering
  • Low-profile mechanical suspension with suspension travel of 2.36 in.
  • Vacuum formed narrow seat cushion of 18.5 in.
  • Asymmetrical backrest shape to make driving backwards more comfortable
  • Adjustable backrest in increments of 2.5° adds comfort and versatility
  • Mechanical lumbar support to help prevent lower back pain
  • Hip restraint guards for safety and to maintain seating position
  • Orange retractable seat belt with switch for added safety
  • Slide rails provide fore/aft adjustment
  • Weight indicator with adjustment of 110 - 375 lbs.
  • Comes standard with operator presence switch
  • Includes necessary 12.91 in. rail spacing with ball slide rail mounting for direct fit
  • Replacement seat for Grammer MSG65/531
  • Durable black vinyl covering
  • Low-profile mechanical suspension with suspension travel of 2.36 in.
  • Vacuum formed narrow seat cushion of 18.5 in.
  • Asymmetrical backrest shape to make driving backwards more comfortable
  • Adjustable backrest in increments of 2.5° adds comfort and versatility
  • Mechanical lumbar support to help prevent lower back pain
  • Hip restraint guards for safety and to maintain seating position
  • Orange retractable seat belt with switch for added safety
  • Slide rails provide fore/aft adjustment
  • Weight indicator with adjustment of 110 - 375 lbs.
  • Comes standard with operator presence switch
  • Includes necessary 12.91 in. rail spacing with ball slide rail mounting for direct fit
  • Replacement seat for Grammer MSG65/531
Multiple Applications for Construction Equipment. Ideal for Toyota® Forklifts:

May Fit Some Models - Check Bolt Pattern to Ensure Proper Fit (Refer to Technical Drawings in Documents Tab)

Toyota® 7FBCU, 8FBC, 8FBE, 8FBM, 8FDU, 8FGU, 8FD-U, 8FG-U, 8FGCU, 8FGC-U, 05-8FBM and THDC Series Forklifts:
  • 7FBCU Series: 7FBCU35, 7FBCU45, 7FBCU55
  • 8FBC Series: 8FBC15U, 8FBC18U, 8FBCU20, 8FBCU25, 8FBCU28, 8FBCU30, 8FBCU32, 8FBCHU25, 8FBCU20-COMP, 8FBCU25-COMP
  • 8FBE Series: 8FBE15U, 8FBE18U, 8FBE20U, 8FBEH18U, 8FBES15U
  • 8FBM Series: 8FBM40T, 8FBM45T, 8FBM50T
  • 8FDU Series: 8FDU15, 8FDU18, 8FDU20, 8FDU25, 8FDU30, 8FDU32
  • 8FGU Series: 8FGU15, 8FGU18, 8FGU20, 8FGU25, 8FGU30, 8FGU32
  • 8FD-U Series: 8FD35U, 8FD40U, 8FD45U, 8FD50U
  • 8FG-U Series: 8FG35U, 8FG40U, 8FG45U, 8FG50U
  • 8FGCU Series: 8FGCU15, 8FGCU18, 8FGCU20, 8FGCU25, 8FGCU30, 8FGCU32, 8FGCSU20
  • 8FGC-U Series: 8FGC35U, 8FGC45U, 8FGC55U, 8FGC60U, 8FGC70U, 8FGC35U-BCS, 8FGC45U-BCS, 8FGC55U-BCS, 8FGC55U-PRS
  • 05-8FBM Series: 05-8FBM20T, 05-8FBM25T, 05-8FBM30T, 05-8FBM35T, 05-8FBMK25T, 05-8FBMK30T
  • THDC Series: THDC1800-24, THDC1800-36, THDC2200-24, THDC2200B-24
Replaces Grammer Part Number: 1446047
Product Specifications
Equipment TypeMechanical Suspension Seat
Country of OriginMade in the USA (with US and imported components)
Product Specifications
Equipment TypeMechanical Suspension Seat
Country of OriginMade in the USA (with US and imported components)
