- Includes 12-in. wide, 3-tooth digging bucket
- 15 HP Ducar 420cc gas engine with recoil and electric start
- 60-degree left and right boom rotation
- 80-in. (6.7 ft.) max. digging depth, 14-in. digging width
- 340-lb. lift capacity
- 8-ft. max. reach
- Approximately 130-degree operating angle
- 3600 max. RPM

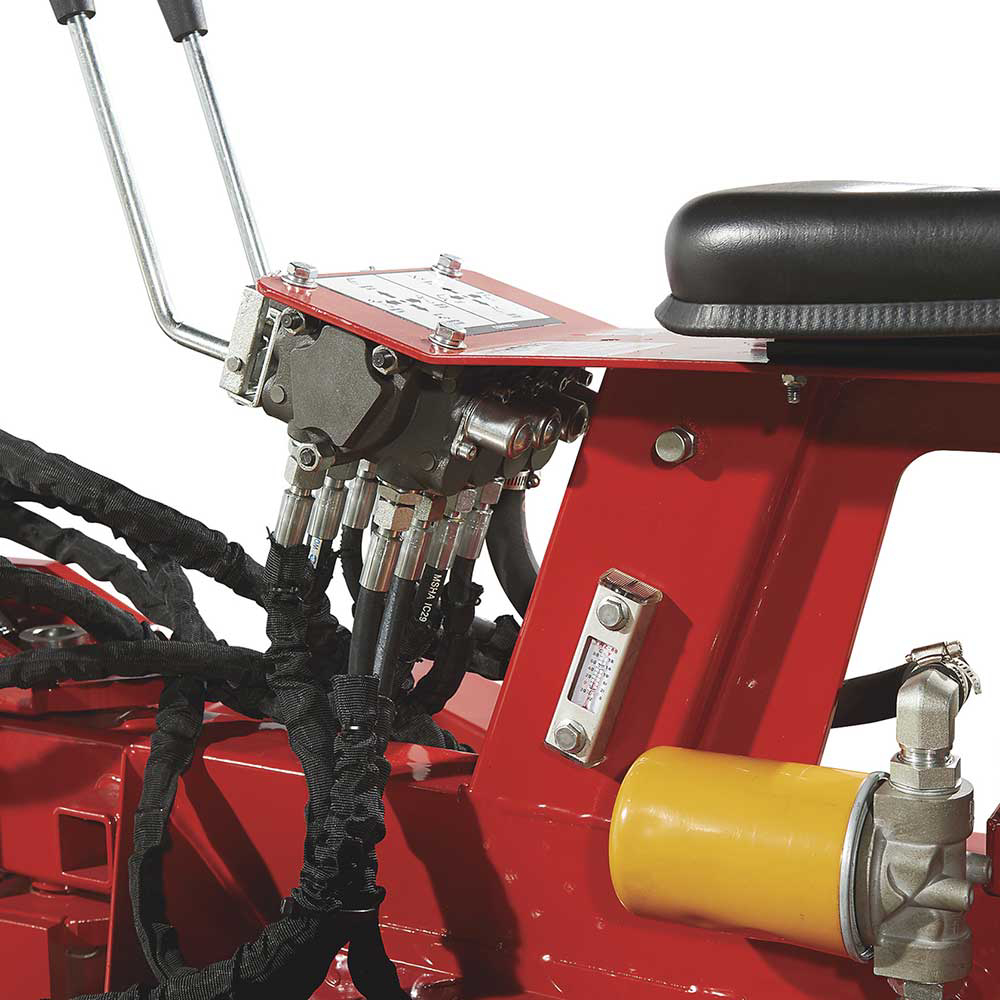

- 2 control levers offer 4-way steering
- 2 large, smooth-rolling tires
- Adjustable safety seat adds comfort
- High-efficiency 3.8 GPM hydraulic oil pump with 4 double-acting hydraulic cylinders and hydraulic oil temperature display

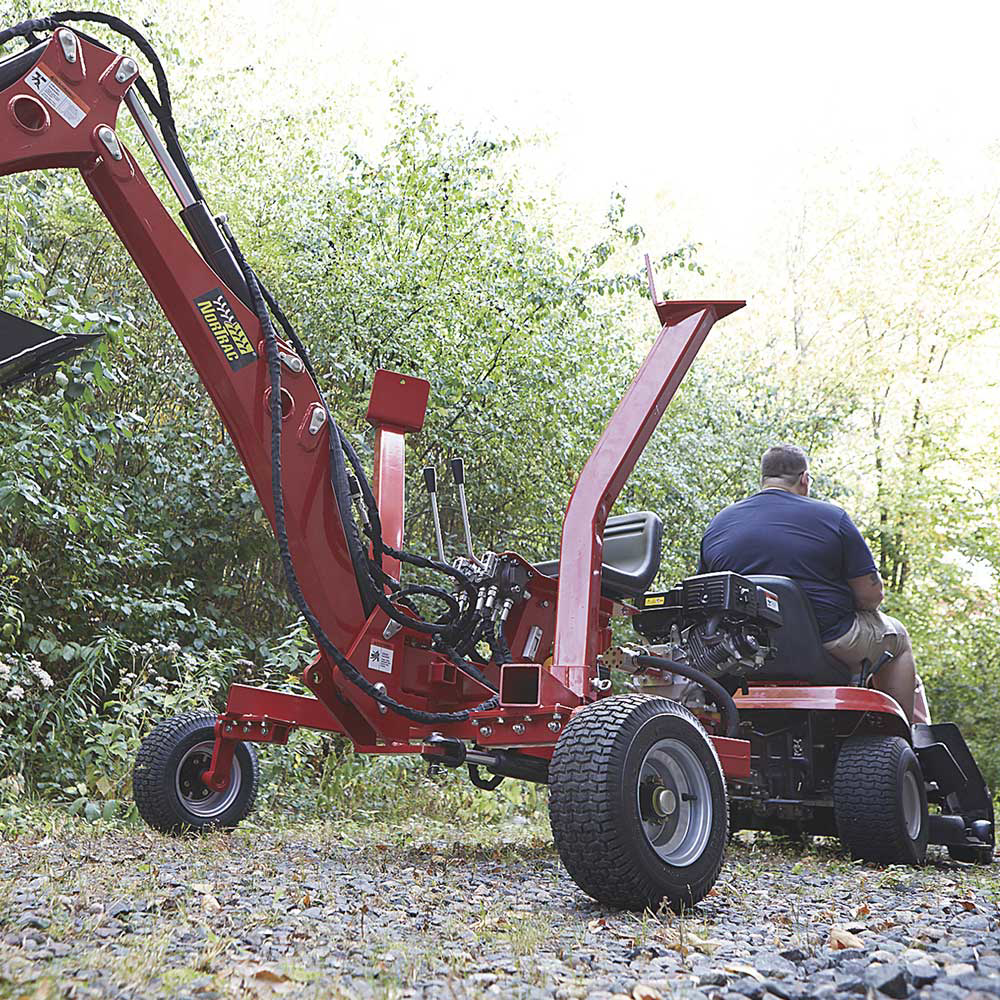

- 2-in. ball hitch for towing with a truck, tractor, UTV, or ATV
- 136 in. L x 76.5 in. W x 61 in. H overall size

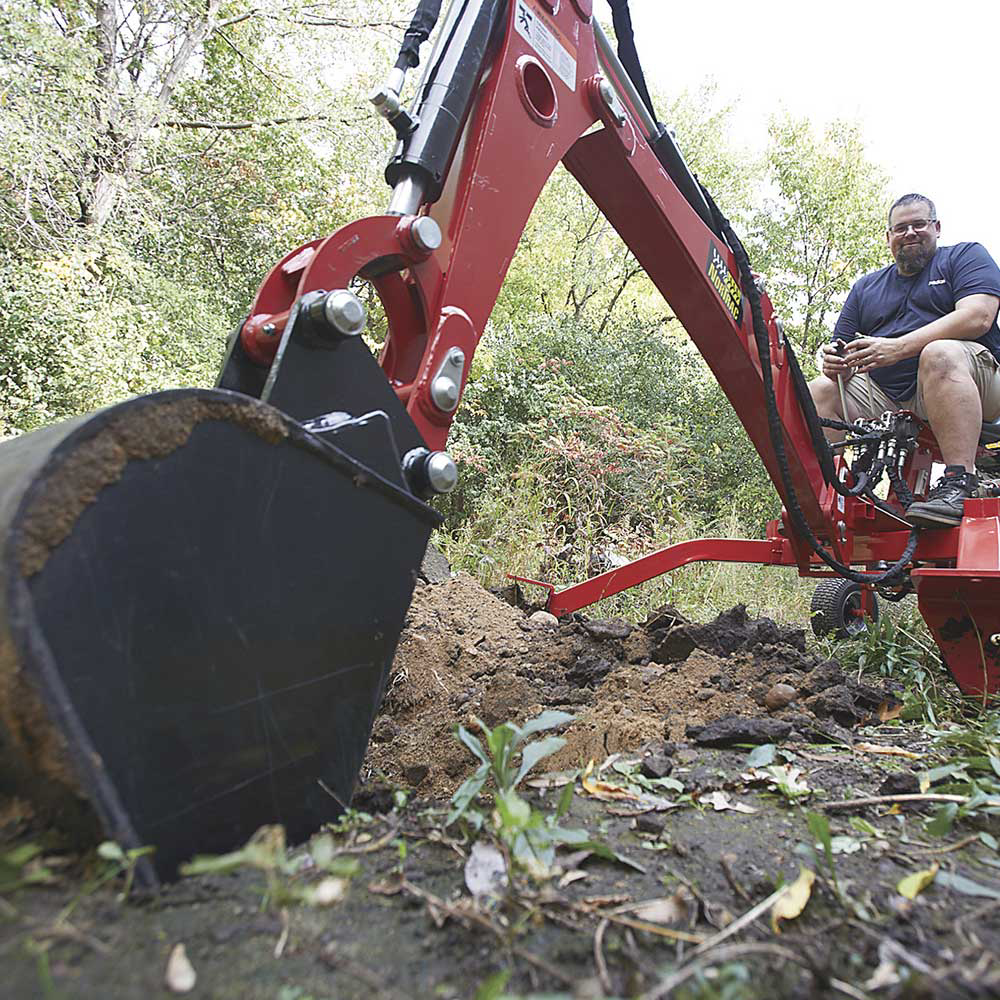

Ideal for Towing Behind ATV, Tractor, Truck, or UTV for Landscaping Projects, Including Trenching, Planting Large Trees, Removing Stumps, and More
Product Specifications
Equipment Type | Trencher (Towable) |
Clearing Height | 8 In. Ground Clearance |
Cylinders | 1 |
Displacement | 420cc |
Dry Weight | 990 Lbs |
Engine | 15 Hp |
Engine Brand | Ducar |
Fuel Capacity | 1.7 Gal |
Lift Range | 96 In. Max Height; 340 Lbs Capacity |
Max RPM | 3600 |
Max Trench Depth | 80 In. |
Max Trench Width | 12 In. |
SKU | 985619 |
Starter | Electric W/recoil Backup |
Torque | 19.54 Ft. Lbs. |
