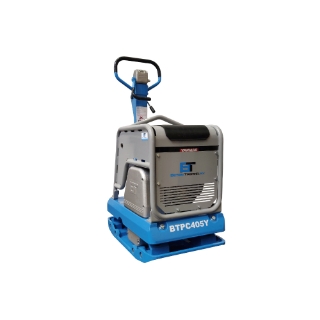

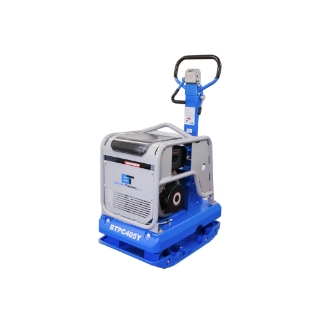

BT Reversible Plate Compactor | 20-in. | Yanmar L100 | 990 lbs.

The BTPC405Y reversible plate compactor features a hydraulic reversing mechanism, making it easy to maneuver for forward and backward movement. This compact is designed for durability, with a cast aluminum belt guard to protect the clutch, and a ductile iron base for added longevity. This compactor has a fully enclosed frame, which protects the powerful Yanmar L100 diesel engine for maximum reliability. The plate covers a 19.6 by 35.4 In. area, providing excellent coverage, with a travel speed between 65 to 82 feet per minute. It’s even great on slopes up to a 35% climb gradient, and easy to transport with an integrated hoist hook recess.

SKU: BTPC405Y

Manufacturer Part Number: BTPC405Y

Brand: Beton Trowel

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, inventory, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits

Powered by a Yanmar L70 diesel engine
Engine is protected from sand, soil, and other small debris by an enclosed frame
Hydraulic reversing mechanism allows forward and backward movement
Cast iron aluminum throttle and ductile iron base provide extra longevity
Heavy-duty construction supports 11,240 lb. of compaction force
Covers ground quickly with a travel speed of 65 to 82 feet per minute, at up to 35% climbing gradient
19.7 by 35.4 in. plate provides great coverage for compaction
Easily load and unload with hoist hook recess

Powered by a Yanmar L70 diesel engine
Engine is protected from sand, soil, and other small debris by an enclosed frame
Hydraulic reversing mechanism allows forward and backward movement
Cast iron aluminum throttle and ductile iron base provide extra longevity
Heavy-duty construction supports 11,240 lb. of compaction force
Covers ground quickly with a travel speed of 65 to 82 feet per minute, at up to 35% climbing gradient
19.7 by 35.4 in. plate provides great coverage for compaction
Easily load and unload with hoist hook recess

Product Specifications

Equipment Type	Reversible Plate Compactor
Centrifugal Force (Lb.)	11,240 lb.
Dimensions	35 in. L x 20 in. W x 55 in. H
Engine	L100 Diesel
Engine Brand	Yanmar
Gradient Climb	35%
Horsepower	6.5 HP
Plate Size L x W (In.)	35.4 in. L × 19.7 in. W
Travel Speed	75 Ft./Min.
Vibrations Per Minute	4400
Warranty	1 Year
Water Tank	No
Weight	992 lb.

Product Specifications

Equipment Type	Reversible Plate Compactor
Centrifugal Force (Lb.)	11,240 lb.
Dimensions	35 in. L x 20 in. W x 55 in. H
Engine	L100 Diesel
Engine Brand	Yanmar
Gradient Climb	35%
Horsepower	6.5 HP
Plate Size L x W (In.)	35.4 in. L × 19.7 in. W
Travel Speed	75 Ft./Min.
Vibrations Per Minute	4400
Warranty	1 Year
Water Tank	No
Weight	992 lb.
