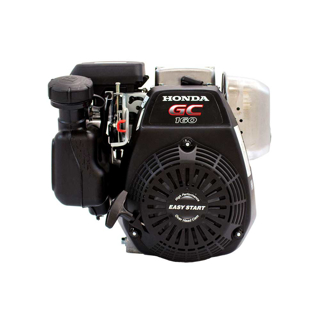

Honda | GC Series | OHC | 160cc | 2.83 In. Tapered | Recoil | Horizontal | Generator Spec

Specifically designed for home-use power equipment applications, the GC engine provides an ideal source of power for a variety of consumer products.

SKU: GC160LAVXA-BLK

Manufacturer Part Number: GC160LAVXA-BLK

Existing GNE customers, please sign in for pricing, inventory, and to order.

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits

NULL

NULL

Product Specifications

Equipment Type	Engine (Horizontal)
Air Cleaner Type	Dry (Paper)
Bearing Type	Ball
Bore	2.5-In.
CARB Approval For California	Yes
Carburetor	Butterfly Float
Choke Control	Manual
Compression Ratio	8.5:1
Cooling System	Air Cooled
Crankshaft	V-Type
Crankshaft Diameter	.75 In. (3/4)
Crankshaft Length	2.83-In.
Crankshaft Output	Horizontal
Cylinder Bore	Aluminum Alloy
Cylinders (Qty.)	1
Engine Displacement	160 cc
Fuel Filter	In-Line
Fuel Tank & Capacity	Yes, 1.9 Qt
Governor System	Centrifugal Mechanical
Ignition System	Transistorized Magneto
Item No_	GC160LAVXA-BLK
Low Oil Alert	Yes
Low Oil Shutdown	Yes
Lubrication System	Splash
Max. RPM	3600
Mounting Base Length	6.375-In.
Mounting Base Width	2.95 to 3.46-In.
Mounting Bolt Circle	3.625-In.
Muffler Included	Yes
Net Power Output	4.6 HP
Net Torque	6.9 Ft-Lbs.
Oil Capacity	0.61 Qt
Product Dimensions L X W X H - In. (mm)	13.3-In. (337mm) X 14.5-In. (369mm) X 13-In. (331mm)
Product Weight	35
PTO Height	4.17-In.
Starter Type	Recoil
Stroke	2 In.
Throttle Control	Gen Type
