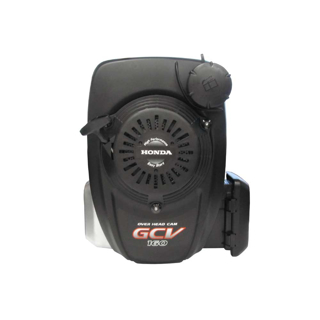

Honda GCV Series | OHC | 160cc | 20 mm. x 3.08 | Recoil | Vertical | No Flywheel Brake

Honda GCV engines offer a quiet, yet powerful and lightweight combination for a variety of demanding applications. Ideal for residential mowers and pressure washers, these engines pack a punch.

SKU: GCV160LA0BHH-BLK

Manufacturer Part Number: GCV160LA0BHH-BLK

Brand: Honda

Where to Buy

Existing GNE customers, please sign in for pricing, availability, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits Videos Product Specifications Related Products

Product Specifications

Equipment Type	Engine (Vertical)
Air Cleaner Type	Dry (Paper)
Bearing Type	Standard
Bore	2.5-In.
CARB Approval For California	Yes
Carburetor	Float
Choke Control	Remote
Compression Ratio	8.5:1
Cooling System	Air Cooled
Crankshaft	B-Type
Crankshaft Diameter	Metric 20 MM
Crankshaft Length	5.29-In.
Crankshaft Output	Vertical
Crankshaft Rotation (From PTO Shaft Side)	Counterclockwise
Cylinder Bore	Aluminum Alloy
Cylinders (Qty.)	1
Engine Displacement	160 CC
Fuel Filter	In-Line
Fuel Tank & Capacity	Yes, 0.98 qt
Governor System	Centrifugal Mechanical
Ignition System	Transistorized Magneto
Item No_	GCV160LA0BHH-BLK
Lubrication System	Splash
Max. RPM	3600
Mounting Bolt Circle	8.5-In.
Muffler Included	Yes
Net Power Output	4.6 HP
Net Torque	6.9 Ft-Lbs.
Oil Capacity	0.58 qt
Product Dimensions L X W X H - In. (mm)	14.37 X 13 X 13.81-In.
Product Weight	34
Starter Type	Recoil
Stroke	2-In.
Throttle Control	Standard

Pricing and Availability Subject to Change
