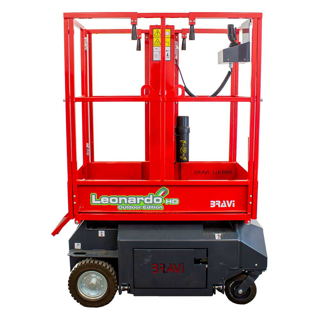

Bravi Leonardo HD Lift | Driveable | 1 Man | 10-Ft. Platform Height | 100 Ah x2

The Leonardo HD is the first mobile platform to arrive on site and the last to leave. With a working height of 16 ft., the Leonardo can easily be driven through doorways and into tight spaces that typically require scaffolding or ladders. Its compact size, versatile maneuverability, and weight of only 1,124 lbs. allow the Leonardo HD to fit into most elevators and reach top floors effortlessly without requiring the operator to leave the platform. The Leonardo HD also features a best-in-class 35% gradeability, allowing this product to handle rental demands effortlessly.

SKU: GPE211004

Manufacturer Part Number: 000.01427CF.00035

Brand: Bravi-Platforms

Where to Buy

Existing GNE customers, please sign in for pricing, availability, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits Videos Product Specifications Related Products

Features and Benefits

With a lowered platform, the Leonardo HD effortlessly handles gradients up to 35% and overcomes obstacles like steps with simple ramps, making it ideal for rental use with easy loading/unloading and job site access.
Easily drives through doorways, tight spaces, and passenger elevators
Dual rollout decks provide outreach at both ends without sacrificing any platform capacity
Wheel locking device allows you to drive forward and backward in a straight line when accessing narrow aisles or driving on ramps
Wide-drive and steer non-marking tires for reduced ground pressure and increased traction on tough jobs
Drivable at full height, fully loaded, and with the platform fully extended
Unrestricted capacity of 397 lbs. reduces the need to climb up or down to load material
Build-in tilt sensor, flashing light, and audible alarm are all standard features
Maintenance-free lifting mass
Simple design and intuitive component layout ensure a straightforward experience

Product Specifications

Equipment Type	Mast Lift
Ascent/Descent Speed	21 Seconds
Entrance Step Height	1 Ft. 3 In.
Height w/ Basket Lowered	5 Ft. 7 In.
Max Running Speed	1.9 MPH
Payload	397 Lbs.
Platform Height	9 Ft. 6 In.
Rated Number of Occupants	1
Working Height	16 Ft.
