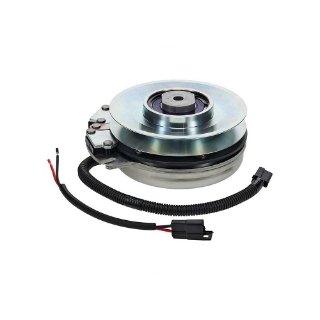

Xtreme Clutch | Replaces OEM: Simplicity 5100084, 5100084S, 5100084SM, 5105090, 5105090YP

The Xtreme PTO clutch for Simplicity Citation series mowers delivers better performance and higher reliability than stock clutches. This clutch features a CNC machined billet pulley for quieter and smoother performance at fast blade speeds, while increasing overall strength and stability. The replaceable FatBoy pulley bearing is a massive upgrade, adding durability to the clutch, while making repairs simple. Designed for long life, Xtreme bearings use a blend of high temperature grease and harder races to minimize wear. Stainless steel brake rivets hold the entire clutch assembly together, adding both strength and safety. Xtreme clutches also use a “Cool Coil” to run 20 percent cooler than competitors, with a composite coil that runs around 175 degrees Fahrenheit.

SKU: GWG311314

Manufacturer Part Number: X0245

Brand: Xtreme Outdoor Power Equipment

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, inventory, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits

Produces 205 Ft. Lb. of torque to prevent overheating for heavy duty use
Counterclockwise rotation only
6-5/16 In. pulley with 1-1/8 In. inside diameter, uses ½ In. or 5/8 In. belt
CNC machined billet pulley for added strength and stability at fast blade speeds
Replaceable FatBoy pulley bearing increases bearing life, and makes repairs easy
Bearings use a mix of high temperature bearing grease and hardened races to improve service life
Wires are protected using a triple layered, watertight connection
Stainless steel rivets for safe operation and long-term durability
"Cool Coil" runs over 20 percent cooler than competitors, reducing heat and extending life
Works with Simplicity Citation series model no. 5900522, 5900523, 5900524, 5900525, 5900526, 5900527, 5900530, 5900531, 5900762, 5900764, 5900820, 5900821, 5900954, 2690479
Replaces Simplicity OEM no. 5100084, 5100084S, 5100084SM
Replaces Warner no. 5218-2
Check the Documents tab for a full reference guide of compatible mowers and OEM part numbers

Features + Benefits
Specifications
Videos
Documents

Produces 205 Ft. Lb. of torque to prevent overheating for heavy duty use
Counterclockwise rotation only
6-5/16 In. pulley with 1-1/8 In. inside diameter, uses ½ In. or 5/8 In. belt
CNC machined billet pulley for added strength and stability at fast blade speeds
Replaceable FatBoy pulley bearing increases bearing life, and makes repairs easy
Bearings use a mix of high temperature bearing grease and hardened races to improve service life
Wires are protected using a triple layered, watertight connection
Stainless steel rivets for safe operation and long-term durability
"Cool Coil" runs over 20 percent cooler than competitors, reducing heat and extending life
Works with Simplicity Citation series model no. 5900522, 5900523, 5900524, 5900525, 5900526, 5900527, 5900530, 5900531, 5900762, 5900764, 5900820, 5900821, 5900954, 2690479
Replaces Simplicity OEM no. 5100084, 5100084S, 5100084SM
Replaces Warner no. 5218-2
Check the Documents tab for a full reference guide of compatible mowers and OEM part numbers

Product Specifications
