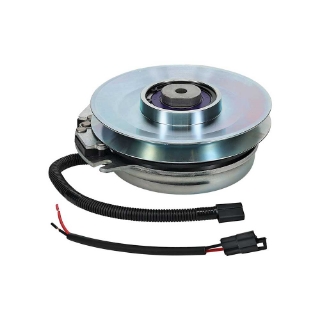

Xtreme Clutch | Replaces OEM: Toro 103-0690, 105-3630, 109-2916, 109-7036, 109-9276,

The Xtreme PTO clutch for Toro and Lawn-Boy mowers delivers better performance and higher reliability than stock clutches. This clutch features a CNC machined billet pulley for quieter and smoother performance at fast blade speeds, while increasing overall strength and stability. The replaceable FatBoy pulley bearing is a massive upgrade, adding durability to the clutch, while making repairs simple. Designed for long life, Xtreme bearings use a blend of high temperature grease and harder races to minimize wear. Stainless steel brake rivets hold the entire clutch assembly together, adding both strength and safety. Xtreme clutches also use a “Cool Coil” to run 20 percent cooler than competitors, with a composite coil that runs around 175 degrees Fahrenheit.
SKU: GWG311315
Manufacturer Part Number: X0017
As a consumer, I wish to purchase, rent, or service this product at the nearest retail store, rental center, or service shop.
As a reseller, rental center owner, or manufacturer, I want to partner with GNE to include this product in my store inventory, rental fleet, or OEM product offerings.

Buy More, Save More

QtyYour Cost
({{unit_of_measure}})
Limited-Time Savings
({{unit_of_measure}})
Now Only
({{unit_of_measure}})
Order Now to Get Your Best Price Today
Features and Benefits
  • Produces 205 Ft. Lb. of torque to prevent overheating for heavy duty use
  • Counterclockwise rotation only
  • 7-3/16 In. pulley with 1 In. inside diameter, uses ½ In. or 5/8 In. belt
  • CNC machined billet pulley for added strength and stability at fast blade speeds
  • Replaceable FatBoy pulley bearing increases bearing life, and makes repairs easy
  • Bearings use a mix of high temperature bearing grease and hardened races to improve service life
  • Wires are protected using a triple layered, watertight connection
  • Stainless steel rivets for safe operation and long-term durability
  • "Cool Coil" runs over 20 percent cooler than competitors, reducing heat and extending life
  • Works with Toro Z Master Z400, Z441, Z449, Z450, and Z450 mowers, serial no. 250000001 - 270999999
  • Replaces Toro OEM no. 653048, 653292, 103-0690, 105-3630, 109-2916, 109-7036, 109-9276, 125-4673, 130-1849, 130-4673, 1-653048, 1-653292, E653048, E653292
  • Replaces Lawn-Boy OEM no. 109-9276
  • Replaces Warner no. 5218-109, 5218-150, 5218-16, 5218-205, 5218-215, 5218-251,
  • 5218-296, 5218-327, 5218-335, 5218-44, 5218-49, 5218-80, 5218-80C
  • Check the Documents tab for a full reference guide of compatible mowers and OEM part numbers
  • Produces 205 Ft. Lb. of torque to prevent overheating for heavy duty use
  • Counterclockwise rotation only
  • 7-3/16 In. pulley with 1 In. inside diameter, uses ½ In. or 5/8 In. belt
  • CNC machined billet pulley for added strength and stability at fast blade speeds
  • Replaceable FatBoy pulley bearing increases bearing life, and makes repairs easy
  • Bearings use a mix of high temperature bearing grease and hardened races to improve service life
  • Wires are protected using a triple layered, watertight connection
  • Stainless steel rivets for safe operation and long-term durability
  • "Cool Coil" runs over 20 percent cooler than competitors, reducing heat and extending life
  • Works with Toro Z Master Z400, Z441, Z449, Z450, and Z450 mowers, serial no. 250000001 - 270999999
  • Replaces Toro OEM no. 653048, 653292, 103-0690, 105-3630, 109-2916, 109-7036, 109-9276, 125-4673, 130-1849, 130-4673, 1-653048, 1-653292, E653048, E653292
  • Replaces Lawn-Boy OEM no. 109-9276
  • Replaces Warner no. 5218-109, 5218-150, 5218-16, 5218-205, 5218-215, 5218-251,
  • 5218-296, 5218-327, 5218-335, 5218-44, 5218-49, 5218-80, 5218-80C
  • Check the Documents tab for a full reference guide of compatible mowers and OEM part numbers
Product Specifications
Equipment TypePTO Clutches
Product Specifications
Equipment TypePTO Clutches
