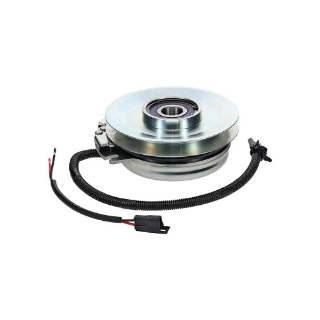

Xtreme Clutch | Replaces OEM: Exmark 116-1611, 03-3132, 103-3246, 103-4000, 103-4057, 103-5835

The Xtreme PTO clutch for Exmark mowers delivers better performance and higher reliability than stock clutches. This clutch features a CNC machined billet pulley for quieter and smoother performance at fast blade speeds, while increasing overall strength and stability. The replaceable FatBoy pulley bearing is a massive upgrade, adding durability to the clutch, while making repairs simple. Designed for long life, Xtreme bearings use a blend of high temperature grease and harder races to minimize wear. Stainless steel brake rivets hold the entire clutch assembly together, adding both strength and safety. Xtreme clutches also use a “Cool Coil” to run 20 percent cooler than competitors, with a composite coil that runs around 175 degrees Fahrenheit.

SKU: GWG311324

Manufacturer Part Number: X0461

Brand: Xtreme Outdoor Power Equipment

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, inventory, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits

Produces 200 Ft. Lb. of torque to prevent overheating for heavy duty use
Clockwise rotation only
7-1/8 In. pulley with 1-1/8 In. inside diameter, uses ½ In. or 5/8 In. belt
CNC machined billet pulley for added strength and stability at fast blade speeds
Replaceable FatBoy pulley bearing increases bearing life, and makes repairs easy
Bearings use a mix of high temperature bearing grease and hardened races to improve service life
Wires are protected using a triple layered, watertight connection
Stainless steel rivets for safe operation and long-term durability
"Cool Coil" runs over 20 percent cooler than competitors, reducing heat and extending life
Works with Exmark Lazer Z EFI serial no. 440,000 and up, Lazer Z Air Cooled EFI serial no. 720,000 and up, Lazer Z AS EFI serial no. 510,000 to 789,999, Lazer Z AS serial no. 510,000 to 719,999, Lazer Z EFI serial no. 370,000 to 439,999
Replaces Exmark OEM no. 103-3132, 103-3246, 103-4000, 103-4057, 103-5835, 103-6579, 109-7665, 109-7673, 116-1611
Replaces Warner no. 5218-168, 5218-202, 5218-209, 5218-233, 5218-99
Check the Documents tab for a full reference guide of compatible mowers and OEM part numbers

Features + Benefits
Specifications
Videos
Documents

Produces 200 Ft. Lb. of torque to prevent overheating for heavy duty use
Clockwise rotation only
7-1/8 In. pulley with 1-1/8 In. inside diameter, uses ½ In. or 5/8 In. belt
CNC machined billet pulley for added strength and stability at fast blade speeds
Replaceable FatBoy pulley bearing increases bearing life, and makes repairs easy
Bearings use a mix of high temperature bearing grease and hardened races to improve service life
Wires are protected using a triple layered, watertight connection
Stainless steel rivets for safe operation and long-term durability
"Cool Coil" runs over 20 percent cooler than competitors, reducing heat and extending life
Works with Exmark Lazer Z EFI serial no. 440,000 and up, Lazer Z Air Cooled EFI serial no. 720,000 and up, Lazer Z AS EFI serial no. 510,000 to 789,999, Lazer Z AS serial no. 510,000 to 719,999, Lazer Z EFI serial no. 370,000 to 439,999
Replaces Exmark OEM no. 103-3132, 103-3246, 103-4000, 103-4057, 103-5835, 103-6579, 109-7665, 109-7673, 116-1611
Replaces Warner no. 5218-168, 5218-202, 5218-209, 5218-233, 5218-99
Check the Documents tab for a full reference guide of compatible mowers and OEM part numbers

Product Specifications
