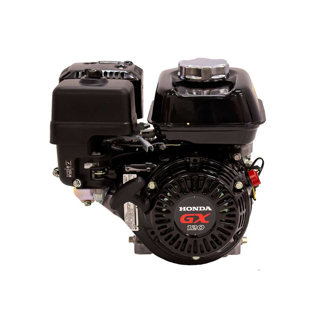

Honda GX Series | OHV | 118cc | 18 mm. x 2.09 In. | Recoil | Horizontal | Bomag Spec

Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX120 lives up to legend. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.

SKU: GX120UT3SG24-BLK

Manufacturer Part Number: GX120UT3SG24-BLK

Brand: Honda

Where to Buy

Existing GNE customers, please sign in for pricing, availability, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits Videos Product Specifications Related Products

Product Specifications

Equipment Type	Engine (Horizontal)
Air Cleaner Type	Dual Element
Bearing Type	Ball
Bore	2.4-In.
CARB Approval For California	Yes
Carburetor	Butterfly Float
Choke Control	Manual
Compression Ratio	8.3:1
Cooling System	Air Cooled
Crankshaft	S-Type
Crankshaft Diameter	Metric 18 MM, M8 Tapped
Crankshaft Length	2.09-In.
Crankshaft Output	Horizontal
Cylinder Bore	Cast Iron
Cylinders (Qty.)	1
Engine Displacement	122 CC
Fuel Filter	In-Line
Fuel Tank & Capacity	Yes, 2.1 Qt
Governor System	Centrifugal Mechanical
Ignition System	Transistorized Magneto
Item No_	GX120UT3SG24-BLK
Low Oil Alert	Yes
Low Oil Shutdown	Yes
Lubrication System	Splash
Max. RPM	3600
Mounting Base Length	6.375-In.
Mounting Base Width	3.15 to 3.34-In.
Mounting Bolt Circle	3.625-In.
Muffler Included	Yes
Net Power Output	3.2 HP
Net Torque	5.5 Ft-Lbs.
Oil Capacity	0.59 Qt
Product Dimensions L X W X H - In. (mm)	11.69-In. (297mm) X 13.62-In. (346mm) X 12.95-In. (329mm)
Product Weight	35
PTO Height	4.17-In.
Starter Type	Recoil
Stroke	1.7-In.
Throttle Control	Remote Wire
