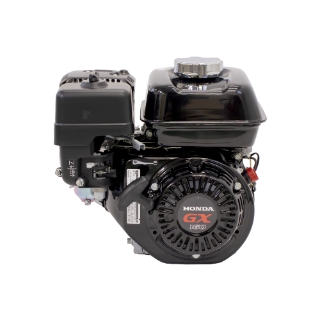

Honda | GX Series | OHV | 163cc | 3/4 In. X 2.00 In. | Recoil | Horizontal | 6:1 Gear Reduction

With the GX160 you’re looking at some of the best engines in the business. Powerful, Reliable, Durable, and Quiet. Honda’s GX Series is power you can trust, and then some.

SKU: GX160UT2XHX2-BLK

Brand: Honda

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, inventory, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Specifications
Videos

Product Specifications

Equipment Type	Engine (Horizontal)
Air Cleaner Type	Dual Element
Bearing Type	Ball
Bore	2.7-In.
CARB Approval For California	No
Carburetor	Butterfly Float
Choke Control	Manual
Compression Ratio	9.0:1
Cooling System	Air Cooled
Crankshaft	H-Type
Crankshaft Diameter	.75 In. (3/4)
Crankshaft Length	2 In.
Crankshaft Output	Horizontal
Crankshaft Rotation (From PTO Shaft Side)	Counterclockwise
Cylinder Bore	Cast Iron
Cylinders (Qty.)	1
Engine Displacement	163 cc
EPA Compliant	Yes
Fuel Filter	In-Line
Fuel Tank & Capacity	Yes, 3.3 Qt
Gear Reduction	1899-30-12 06:01 AM
Governor System	Centrifugal Mechanical
Ignition System	Transistorized Magneto
Lubrication System	Splash
Max. RPM	3600
Mounting Bolt Circle	3.625-In.
Muffler Included	Yes
Net Power Output	4.3 HP
Net Torque	7.6 Ft-Lbs.
Oil Capacity	0.61 Qt.
Product Dimensions L X W X H - In. (mm)	12.2 In. L x 14.3 In. W x 13.6 In. H
Product Weight	33 Lb.
Starter Type	Recoil
Stroke	1.8 In.
Throttle Control	Remote Wire
