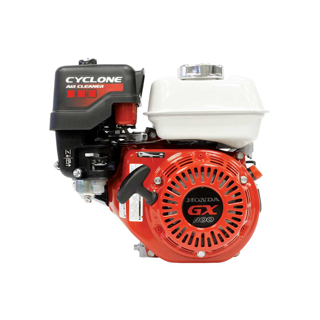

Honda | GX Series | OHV | 196cc | 3/4 In. x 2.43 In. | Recoil | Horizontal | Cyclone Air Cleaner

Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: The GX200 lives up to the legend. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.

SKU: GX200UT2QC9

Manufacturer Part Number: GX200UT2QC9

Brand: Honda

Features and Benefits Videos Product Specifications Related Products

Product Specifications

Equipment Type	Engine (Horizontal)
Air Cleaner Type	Cyclone
Bearing Type	Ball
Bore	2.7-In.
CARB Approval For California	Yes
Carburetor	Butterfly Float
Choke Control	Manual
Compression Ratio	8.5:1
Cooling System	Air Cooled
Crankshaft	Q-Type
Crankshaft Diameter	.75 In. (3/4)
Crankshaft Length	2.43-In.
Crankshaft Output	Horizontal
Cylinder Bore	Cast Iron
Cylinders (Qty.)	1
Engine Displacement	196 CC
Fuel Filter	In-Line
Fuel Tank & Capacity	Yes, 3.3 Qt
Governor System	Centrifugal Mechanical
Ignition System	Transistorized Magneto
Item No_	GX200UT2QC9
Low Oil Alert	Yes
Low Oil Shutdown	Yes
Lubrication System	Splash
Max. RPM	3600
Mounting Base Length	6.375-In.
Mounting Base Width	3.15 to 3.34-In.
Mounting Bolt Circle	3.625-In.
Muffler Included	Yes
Net Power Output	5.8 HP
Net Torque	9.1 Ft-Lbs.
Oil Capacity	0.63 Qt
Product Dimensions L X W X H - In. (mm)	12.64-In. (321mm) X 14.8-In. (376mm) X 13.62-In. (346mm)
Product Weight	40
PTO Height	4.17-In.
Starter Type	Recoil
Stroke	2.1-In.
Throttle Control	Remote Wire
