Equipment Type
|
Engines |
|
Air Cleaner Type
|
Dual element |
|
Bore and Stroke (in#)
|
2.9 x 2.3 |
|
Choke System
|
Manual |
|
Compression Ratio
|
8.5:1 |
|
Cooling System
|
Air cooled |
|
Crankshaft Type
|
H type |
|
Cylinder Bore
|
Cast iron |
|
Cylinders
|
1 |
|
Engine Displacement
|
270cc |
|
Engine Type
|

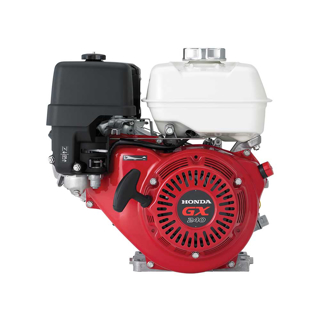

GX Series OHV Commercial-Duty |
|
Fuel Filter
|
Fuel tank filler neck strainer |
|
Fuel Tank
|
Standard (White) |
|
Fuel Tank Capacity (Qt#)
|
5.6 |
|
Fuel Type
|
Gasoline |
|
Gear Reduction
|
H type 6:1 |
|
Item No_
|
GX240UT2HA2 |
|
Low Oil Alert
|
Yes |
|
Low Oil Shutdown
|
Yes |
|
Lubrication System
|
Forced splash |
|
Max# RPM
|
3,600 |
|
Muffler Included
|
Standard, exhaust pipe protector, deflector |
|
Net Power Output
|
7.9 (5.9 kW) at 3,600 RPM |
|
Net Torque (lbs#/Ft)
|
13.5 (18.3 Nm) at 2,500 RPM |
|
Oil Capacity (Qt#)
|
1.16 |
|
PTO Height
|
5.25 |
|
Shaft Diameter (in#)
|
1 |
|
Shaft Keyway
|
0.25 |
|
Shaft Length (in#)
|
3.234375 |
|
Shaft Output
|
Horizontal |
|
Shaft Rotation (from PTO shaft side)
|
Counterclockwise |
|
Start Type
|
Recoil |
|
Throttle Control
|
Manual |
