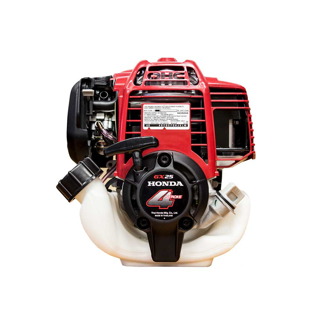

Honda | GX Series | OHC | 25 cc | Clutch-Ready | Recoil | Horizontal Gas Tank

The Honda 25cc GX Series OHC mini commercial-grade engine is designed for the most demanding commercial applications. Expect this engine to be reliable and durable, with an overhead cam design that offers cooler, fuel-efficient operation and cast iron cylinder sleeve that provides longer service life. This engine is reliable, easy starting and quiet running. Great for use with construction equipment. Designed for high-RPM applications such as trimmers, mini-tillers and more.

SKU: GX25NTS3

Manufacturer Part Number: GX25NTS3

Brand: Honda

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, inventory, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Specifications
Videos

Product Specifications

Equipment Type	Engine (Horizontal)
Air Cleaner Type	Semi-Dry
Bearing Type	Ball
Bore	1.37-In.
CARB Approval For California	No
Carburetor	Diaphragm (Overflow Return)
Choke Control	Manual
Compression Ratio	8.0:1
Cooling System	Air Cooled
Crankshaft	Horizontal
Crankshaft Diameter	Clutch Ready
Crankshaft Output	Horizontal
Cylinder Bore	Cast Iron
Cylinders (Qty.)	1
Engine Displacement	25 cc
Fuel Filter	In-Line
Fuel Tank & Capacity	Yes, 0.61 Qt
Ignition System	Transistorized Magneto
Item No_	GX25NTS3
Low Oil Alert	No
Low Oil Shutdown	No
Lubrication System	Crankcase Pressure Driven
Max. RPM	7000
Mounting Base Length	2.3-In.
Mounting Base Width	2.3-In.
Mounting Bolt Circle	2.6-In.
Muffler Included	Yes
Net Power Output	1 HP
Net Torque	0.74 Ft-Lbs.
Oil Capacity	2.7 oz
Product Dimensions L X W X H - In. (mm)	7.56-In. (192mm) X 8.7-In. (221mm) X 9.1-In. (230mm)
Product Weight	10
PTO Height	3.5-In.
Starter Type	Recoil
Stroke	1-In.
Throttle Control	Manual
