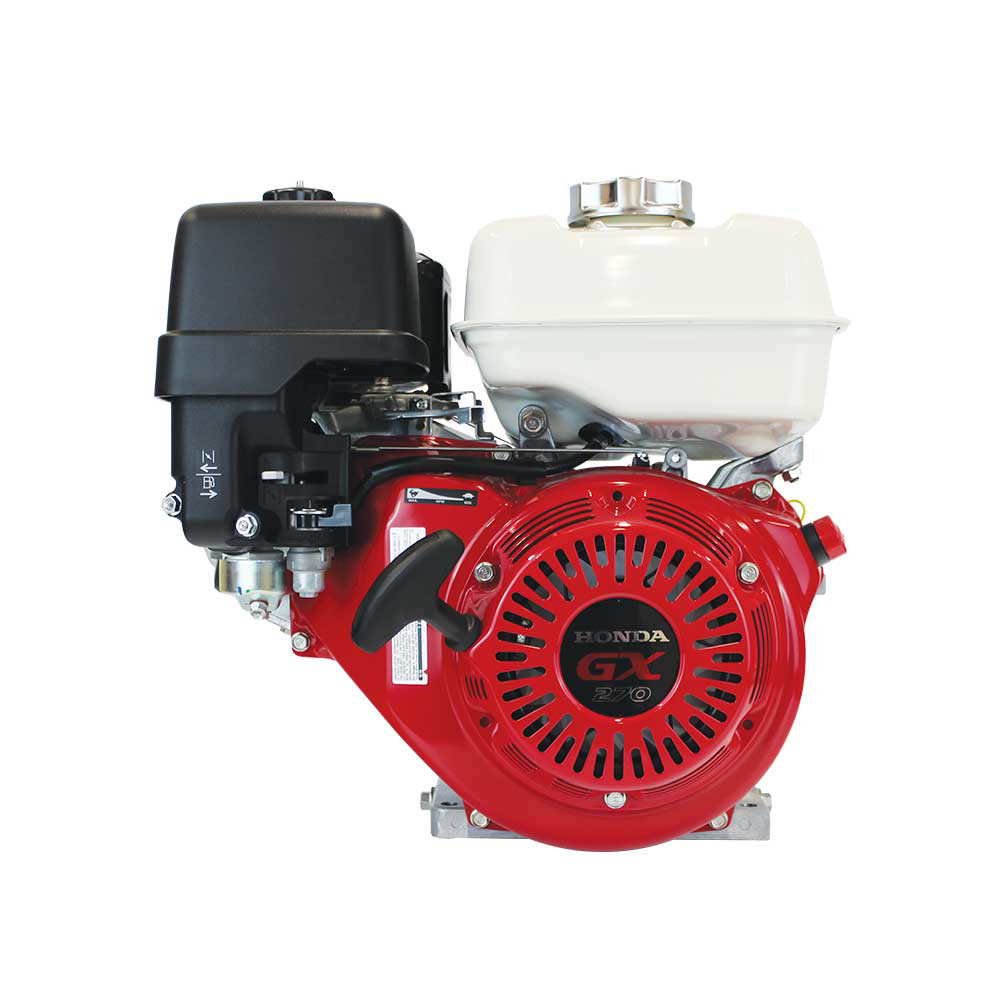

Honda Engine | 270cc | Recoil| OHV |3-31/64 x 1" Tapped 7/16" 20 UNF | Oil Alert|non balanced

SKU: GX270UT2QAG2
Manufacturer part number: GX270UT2QAG2
Brand: Honda
warning iconWARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information visit: www.p65Warnings.ca.gov
Product Specifications
Equipment Type Engines
Air Cleaner Type Dual element
Bearing Type Ball bearing
Bore and Stroke (in#) 3 x 2.3
Choke System Manual
Compression Ratio 8.5:1
Cooling System Air cooled
Crankshaft Type Q-type
Cylinder Bore Cast iron
Cylinders 1
Engine Displacement 270cc
Engine Type GX Series OHV Commercial-Duty
Fuel Filter Yes
Fuel Tank Yes
Fuel Tank Capacity (Qt#) 5.6
Fuel Type Gasoline
Item No_ GX270UT2QAG2
Low Oil Alert Yes
Low Oil Shutdown Yes
Lubrication System Forced splash
Max# RPM 3,600
Muffler Included Yes
Net Power Output 8.5 (6.3 kW) at 3,600 RPM
Net Torque (lbs#/Ft) 14.1 (19.1 Nm) at 2,500 RPM
Oil Capacity (Qt#) 1.16
PTO Height 5.25
Shaft Diameter (in#) 1
Shaft End Tapped 7/16/2020
Shaft Keyway 0.25
Shaft Length (in#) 3.484375
Shaft Output Horizontal
Shaft Rotation (from PTO shaft side) Counterclockwise
Start Type Recoil
Throttle Control Manual
