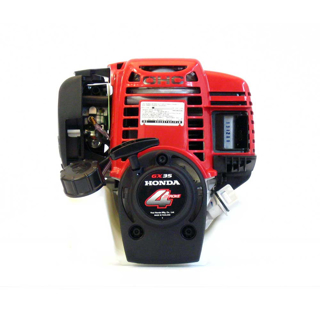

Honda GX Series | OHC | 35.8cc | Clutch-Ready | Recoil | Horizontal Gas Tank

Honda applied their superior engine technology to create the world’s first 360 degree inclinable 4-stroke engines. The ultra-lightweight GX mini four-strokes effectively deliver the kind of efficient, cleaner, powerful, and quiet performance that you’d ex

SKU: GX35NTS3

Manufacturer Part Number: GX35NTS3

Brand: Honda

Where to Buy

Existing GNE customers, please sign in for pricing, availability, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits Videos Product Specifications Related Products

Product Specifications

Equipment Type	Engine (Horizontal)
Air Cleaner Type	Semi-Dry
Bearing Type	Ball
Bore	1.53-In.
CARB Approval For California	Yes
Carburetor	Diaphragm (Overflow Return)
Choke Control	Manual
Compression Ratio	8.0:1
Cooling System	Air Cooled
Crankshaft	Horizontal
Crankshaft Diameter	Clutch Ready
Crankshaft Output	Horizontal
Cylinder Bore	Cast Iron
Cylinders (Qty.)	1
Engine Displacement	35.8 CC
Fuel Filter	In-Line
Fuel Tank & Capacity	Yes, 0.67 Qt
Governor System	Centrifugal Mass
Ignition System	Transistorized Magneto
Item No_	GX35NTS3
Low Oil Alert	No
Low Oil Shutdown	No
Lubrication System	Crankcase Pressure Driven
Max. RPM	7000
Mounting Base Length	2.78-In.
Mounting Base Width	2.78-In.
Mounting Bolt Circle	3.5-In.
Muffler Included	Yes
Net Power Output	1.3 HP
Net Torque	1.2 Ft-Lbs.
Oil Capacity	3.4 Oz
Product Dimensions L X W X H - In. (mm)	8.03-In. (204mm) X 9.21-In. (234mm) X 9.1-In. (230mm)
Product Weight	13
PTO Height	3.9-In.
Starter Type	Recoil
Stroke	1.18-In.
Throttle Control	Manual
