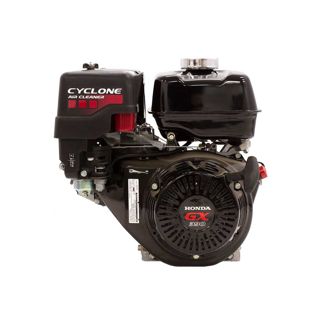

Honda GX Series | OHV | 389cc | 1 In. x 3.48 In. | Recoil | Horizontal | Cyclone Air Cleaner

With the GX390, you’re looking at some of the best engines in the business. Powerful, reliable, durable, and quiet. Honda’s GX series is power you can trust, and then some.

SKU: GX390UT2XQCDW-BLK

Manufacturer Part Number: GX390UT2XQCDW-BLK

Brand: Honda

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, availability, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits Videos Product Specifications Related Products

Product Specifications

Equipment Type	Engine (Horizontal)
Air Cleaner Type	Cyclone
Bearing Type	Ball
Bore	3.5-In.
CARB Approval For California	No
Carburetor	Butterfly Float Type
Choke Control	Manual
Compression Ratio	8.2:1
Cooling System	Air Cooled
Crankshaft	Q-Type
Crankshaft Diameter	1 In.
Crankshaft Length	3.48-In.
Crankshaft Output	Horizontal
Cylinder Bore	Cast Iron
Cylinders (Qty.)	1
Engine Displacement	389 CC
Fuel Filter	In-Line
Fuel Tank & Capacity	Yes, 6.4 Qt
Governor System	Centrifugal Mass
Ignition System	Digital CDI With Variable Timing
Item No_	GX390UT2XQCDW-BLK
Lubrication System	Splash
Max. RPM	3600
Mounting Base Length	7.68-In.
Mounting Base Width	3.39 to 4.06-In.
Mounting Bolt Circle	5, 6.5-In.
Muffler Included	Yes
Net Power Output	11.7 HP
Net Torque	19.5 Ft-Lbs.
Oil Capacity	1.16 Qt
Product Dimensions L X W X H - In. (mm)	16-In. (407mm) X 19.1(485mm) X 17.7-In. (449mm)
Product Weight	75
PTO Height	5.25-In.
Starter Type	Recoil
Stroke	2.5-In.
Throttle Control	Remote Wire

Pricing and Availability Subject to Change
