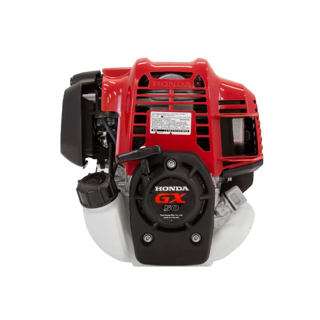

Honda | GX Series | OHV | 47.9cc | Clutch-Ready | Recoil | Horizontal Gas Tank

Honda’s GX50 general-purpose engine expands their mini-four stroke lineup with a model that offers high output and light weight—extending into more demanding commercial and rental applications with excellent fuel efficiency. Featuring a compact and lightw

SKU: GX50NTS3

Manufacturer Part Number: GX50NTS3

Brand: Honda

Features and Benefits Videos Product Specifications Related Products

Product Specifications

Equipment Type	Engine (Horizontal)
Air Cleaner Type	Semi-Dry
Bearing Type	Ball
Bore	1.69-In.
CARB Approval For California	Yes
Carburetor	Diaphragm (Overflow Return)
Choke Control	Manual
Compression Ratio	8.0:1
Cooling System	Air Cooled
Crankshaft	Horizontal
Crankshaft Diameter	Clutch Ready
Crankshaft Output	Horizontal
Cylinder Bore	Cast Iron
Cylinders (Qty.)	1
Engine Displacement	47.9 CC
Fuel Filter	In-Line
Fuel Tank & Capacity	Yes, 0.67 Qt
Governor System	Centrifugal Mass
Ignition System	Transistorized Magneto
Item No_	GX50NTS3
Low Oil Alert	No
Low Oil Shutdown	No
Lubrication System	Crankcase Pressure Driven
Max. RPM	7000
Mounting Base Length	6.375-In.
Mounting Base Width	3.15 to 3.34-In.
Mounting Bolt Circle	3.625-In.
Muffler Included	Yes
Net Power Output	2.0 HP
Net Torque	1.2 Ft-Lbs.
Oil Capacity	4.4 oz
Product Dimensions L X W X H - In. (mm)	7.84-In. (199mm) X 10.24-In. (260mm) X 10.35-In. (263mm)
Product Weight	42
PTO Height	3.9-In.
Starter Type	Recoil
Stroke	1.3-In.
Throttle Control	Manual
