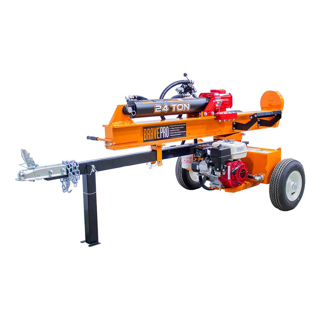

BravePro Log Splitter | 24-Ton | Honda GX160

This BravePro 24-ton log splitter delivers ultimate splitting force, in a strong, well-balanced log splitter. Featuring a reliable Honda GX engine, you can easily split thick green logs with 24 tons of splitting pressure. This model offers commercial-grade features at a lower cost.

SKU: VH1724GX

Manufacturer Part Number: VH1724GX

Brand: Brave

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, inventory, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits

Click Image to Enlarge

Videos

Industrial I-beam construction provides incredible strength
The 4-stage hydraulic filtration system prevents contamination and damage to the hydraulic system by removing metal and other microparticles; components include a suction strainer, breather cap air filter, return line filter, and magnetic drain plug
Log cradles catch split logs and serve as a work table for large logs
Heavy-duty log dislodger ejects logs that stick to the splitting wedge protecting the control valve and other hydraulic components from damage
Convenient lift handle provides added control for quicker, easier and safer transitions between the vertical and horizontal operating positions on 24-37 ton models
Sherwin-Williams powder coat paint to withstand heavy use and weather elements
Nylon hydraulic hose sleeve provides protection from abrasive wear that can damage the hose, accidental spraying from pinhole leaks, and sunlight which can break down the rubber
Industrial cylinder with halite seals keeps constant and consistent pressure while splitting
Tow-ready up to 45 MPH with 2-in. ball hitch, chains, and highway-rated tires

Product Specifications

Equipment Type	Log Splitter (Tow-behind)
Cycle Time	13 Seconds
Cylinder Size	4 In. Cylinder Bore with 24 In. Stroke
Dimensions	95 In. L x 44 In. W x 41 In. H
Displacement	163cc
Dry Weight	500 Lb.
Engine	GX160
Engine Brand	Honda
Fenders	No
Fuel Capacity for Burner	0.83 Gal
Hitch	2 In.
Hydraulic Capacity	8 Gal
Log Cradle	Yes
Log Diameter	16 In. Max
Log Length	25 in. Max
Operation	Horizontal And Vertical
PSI	3500
Splitting Force (Tons)	24 Tons
Splitting Height	28 In.
Towing Speed	45 Mph
Wedge	8 In. High Carbon Steel
