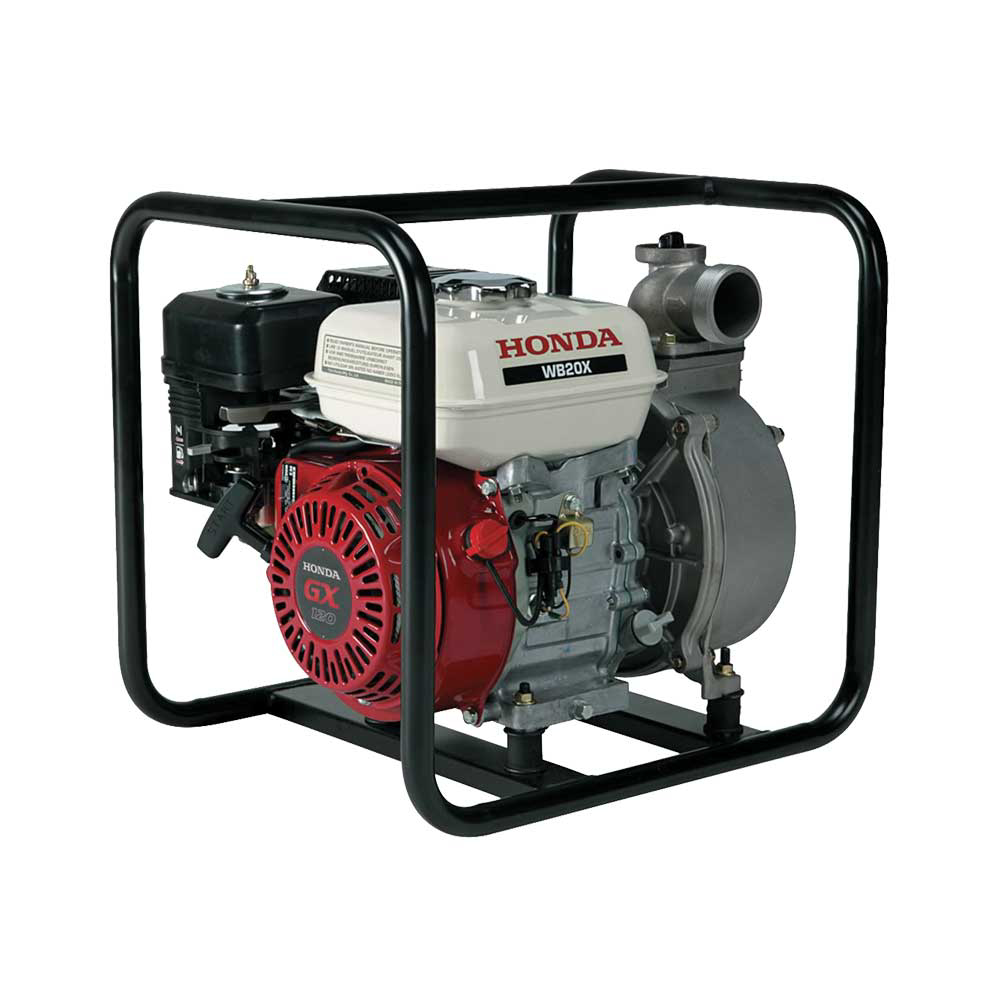

Honda General Purpose Pump | 2 In. | 164 GPM

This Honda Self-Priming Water Pump is powered by a dependable Honda GX series commercial-grade engine that is easy to start and provides ample power for the toughest conditions. Built to last with an abrasion-resistant silicon carbide mechanical seal, cast iron volute and impeller and heavy-duty full-frame protection.
Availability: In Stock and Ready to Ship
SKU: WB20XT4A
Manufacturer Part Number: WB20XT4A
Brand: Honda

Features and Benefits

  • Increased efficiency impeller and volute
  • Powered by Honda ft.s commercial GX engines
  • For construction, agricultural and rental use
  • Renowned premium performance and quality at a value price
  • Cast iron volute and impeller
  • Increased efficiency impeller and volute
  • Powered by Honda ft.s commercial GX engines
  • For construction, agricultural and rental use
  • Renowned premium performance and quality at a value price
  • Cast iron volute and impeller
Product Specifications
Equipment TypePump (General Purpose)
Bore And Stroke2.4 In. X 1.7 In.
Compression Ratio8.5:1
Discharge Capacity164 Gal/min
Discharge Port Diameter2 In. Npt
Displacement118cc
DriveDirect
Dry Weight44 Lbs
EngineGX120
Engine BrandHonda
Fuel Capacity for Burner.53 Gal
ImpellerCast Iron
Mechanical Seal (Pump Case/Impeller)Silicon Carbide/silicon Carbide
Pressure45 Psi
Priming Time110 Sec @ 16.4 Ft.
Pump TypeGeneral Purpose
Run Time1.7 Hrs
SKUWB20XT4A
Strainer Part Number78325-yg3-000
Suction Head Lift25 Ft.
Suction Port Diameter2 In. Npt
Total Head Lift105 Ft.
