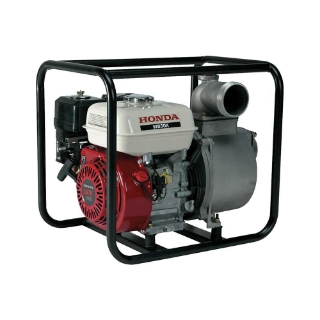

This Honda Water Pump is powered by a dependable Honda GX series commercial-grade engine that is easy to start and provides ample power for the toughest conditions. Built to last with an abrasion-resistant silicon carbide mechanical seal, cast iron volute and impeller and heavy-duty full-frame protection.
Manufacturer part number: WB30XT3
Brand: Honda
warning iconWARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information visit:
Features and Benefits
  • Increased efficiency impeller and volute
  • Powered by Honda ft.s commercial GX engines
  • For construction, agricultural and rental use
  • Renowned premium performance and quality at a value price
  • Cast iron volute and impeller
Product Specifications
Equipment Type Pump
Bore and Stroke 2.7 in. x 1.8 in.
Compression Ratio 9.0:1
Cord Length N/A
Discharge Capacity 290 gal/min
Discharge Port Diameter 3 in. NPT
Displacement 163cc
Drive Direct
Dry Weight 57 lbs
Engine GX160
Engine Brand Honda
Fuel Capacity for Burner .82 gal
Impeller 4 Vane Cast Iron
Item No_ WB30XT3
Mechanical SeaL (Pump Case/Impeller) Silicon Carbide/Silicon Carbide
Motor Power N/A
Pressure 37 PSI
Priming Time 150 sec @16.4 ft.
Pump Type General Purpose
Run Time 1.9 hr
Solids Handling N/A
Strainer Part # 78325-YG4-000
Suction Head Lift 25 ft.
Suction Port Diameter 3 in. NPT
Total Head Lift 85 ft.
