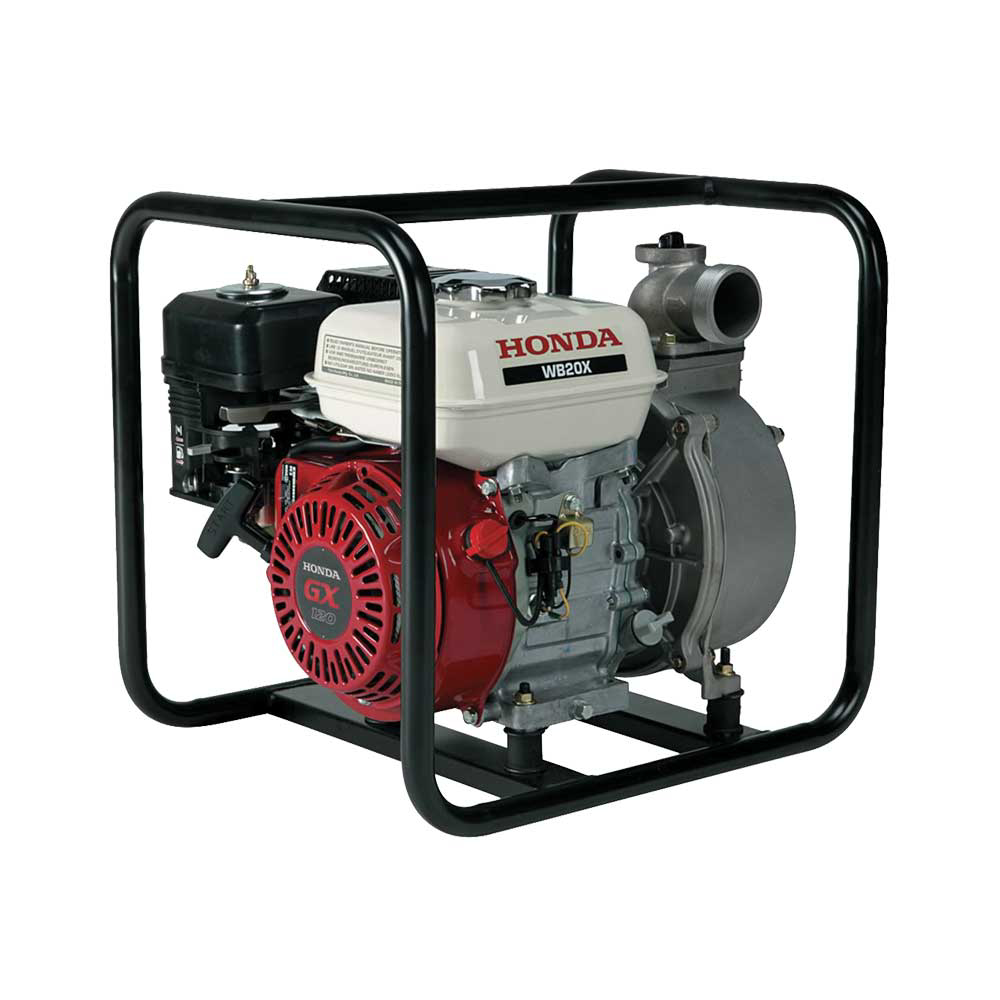

This Honda Self-Priming High Pressure Pump features a maximum pressure of 64 PSI, making it ideal for a variety of applications requiring high pressure. Equipped with an easy-to-start Honda GX160 OHV engine delivers dependable power. The heavy-duty full frame protects the pump and provides a convenient tie-down location for transport.
SKU: WH20XTAF
Manufacturer part number: WH20XTAF
Brand: Honda
warning iconWARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information visit: www.p65Warnings.ca.gov
Features and Benefits
  • High pressure with lower flow
  • Ideal where high pressure is required such as when using sprinklers or a nozzle
  • Cast iron volute and impeller
  • Optional hoses, clamps, and strainer available
Product Specifications
Equipment Type Pump
Bore and Stroke 2.7 in. x 1.8 in.
Compression Ratio 9.0:1
Cord Length N/A
Discharge Capacity 110 gal/min
Discharge Port Diameter 2 in. NPT
Displacement 163cc
Drive Direct
Dry Weight 52 lbs
Engine GX160
Engine Brand Honda
Fuel Capacity for Burner .82 gal
Impeller Cast Iron
Item No_ WH20XTAF
Mechanical SeaL (Pump Case/Impeller) Carbon/Ceramic
Motor Power N/A
Pressure 61 PSI
Priming Time 80 sec. at 16.4 ft.
Pump Type High Pressure De-Watering
Run Time 1.5 hr
Solids Handling N/A
Strainer Part # 78325-YB7-702
Suction Head Lift 26 ft.
Suction Port Diameter 2 in. NPT
Total Head Lift 148 ft.
