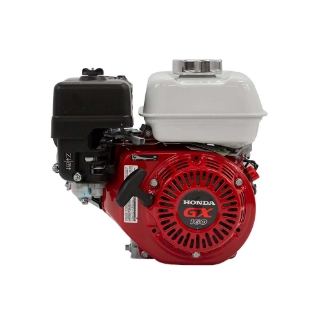

Honda GX Series | OHV | 163cc | 3/4-In. X 2.43-In. | Recoil | Horizontal | 49-State

Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: The GX160 lives up to the legend. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.
SKU: GX160UT2XQX2
Brand: Honda
As a consumer, I wish to purchase, rent, or service this product at the nearest retail store, rental center, or service shop.
As a reseller, rental center owner, or manufacturer, I want to partner with GNE to include this product in my store inventory, rental fleet, or OEM product offerings.

Buy More, Save More

Qty Your Cost
({{unit_of_measure}})
Limited-Time Savings
({{unit_of_measure}})
Now Only
({{unit_of_measure}})
Order Today to Guarantee These Prices
Product Specifications
Equipment Type Engine (Horizontal)
Air Cleaner Type Dual Element
Bearing Type Ball
Bore 2.7-In.
CARB Approval For California Yes
Carburetor Butterfly Float
Choke Control Manual
Compression Ratio 9.0:1
Cooling System Air Cooled
Crankshaft Q-Type
Crankshaft Diameter .75 In. (3/4)
Crankshaft Length 2.43-In.
Crankshaft Output Horizontal
Cylinder Bore Cast Iron
Cylinders (Qty.) 1
Engine Displacement 163 CC
Fuel Filter In-Line
Fuel Tank & Capacity Yes, 3.3 Qt
Governor System Centrifugal Mechanical
Ignition System Transistorized Magneto
Low Oil Alert Yes
Low Oil Shutdown Yes
Lubrication System Splash
Max RPM 3600
Mounting Base Length 6.375-In.
Mounting Base Width 3.15 to 3.34-In.
Mounting Bolt Circle 3.625-In.
Muffler Included Yes
Net Power Output 4.8 HP
Net Torque 7.6 Ft-Lbs.
Oil Capacity 0.61 Qt
Product Dimensions L X W X H - In. (mm) 12.28-In. (312mm) X 14.25-In. (362mm) X 13.62-In. (346mm)
Product Weight 40
PTO Height 4.17-In.
Starter Type Recoil
Stroke 1.8-In.
Throttle Control Remote
