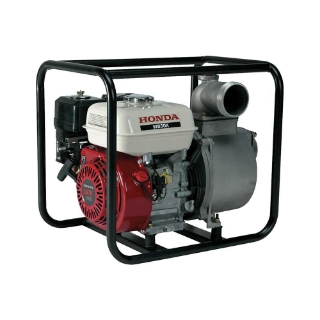

Honda General Purpose Pump | 3 In. | 290 GPM

This Honda Water Pump is powered by a dependable Honda GX series commercial-grade engine that is easy to start and provides ample power for the toughest conditions. Built to last with an abrasion-resistant silicon carbide mechanical seal, cast iron volute and impeller and heavy-duty full-frame protection.
Availability: In Stock and Ready to Ship
SKU: WB30XT3
Manufacturer Part Number: WB30XT3
Brand: Honda

Features and Benefits

  • Increased efficiency impeller and volute
  • Powered by Honda ft.s commercial GX engines
  • For construction, agricultural and rental use
  • Renowned premium performance and quality at a value price
  • Cast iron volute and impeller
  • Increased efficiency impeller and volute
  • Powered by Honda ft.s commercial GX engines
  • For construction, agricultural and rental use
  • Renowned premium performance and quality at a value price
  • Cast iron volute and impeller
Product Specifications
Equipment TypePump (General Purpose)
Bore And Stroke2.7 In. X 1.8 In.
Compression Ratio9.0:1
Discharge Capacity290 Gal/min
Discharge Port Diameter3 In. Npt
Displacement163cc
DriveDirect
Dry Weight57 Lbs
EngineGX160
Engine BrandHonda
Fuel Capacity for Burner.82 Gal
Impeller4 Vane Cast Iron
Mechanical Seal (Pump Case/Impeller)Silicon Carbide/silicon Carbide
Pressure37 Psi
Priming Time150 Sec @16.4 Ft.
Pump TypeGeneral Purpose
Run Time1.9 Hrs
SKUWB30XT3
Strainer Part Number78325-yg4-000
Suction Head Lift25 Ft.
Suction Port Diameter3 In. Npt
Total Head Lift85 Ft.
Product Specifications
Equipment TypePump (General Purpose)
Bore And Stroke2.7 In. X 1.8 In.
Compression Ratio9.0:1
Discharge Capacity290 Gal/min
Discharge Port Diameter3 In. Npt
Displacement163cc
DriveDirect
Dry Weight57 Lbs
EngineGX160
Engine BrandHonda
Fuel Capacity for Burner.82 Gal
Impeller4 Vane Cast Iron
Mechanical Seal (Pump Case/Impeller)Silicon Carbide/silicon Carbide
Pressure37 Psi
Priming Time150 Sec @16.4 Ft.
Pump TypeGeneral Purpose
Run Time1.9 Hrs
SKUWB30XT3
Strainer Part Number78325-yg4-000
Suction Head Lift25 Ft.
Suction Port Diameter3 In. Npt
Total Head Lift85 Ft.
