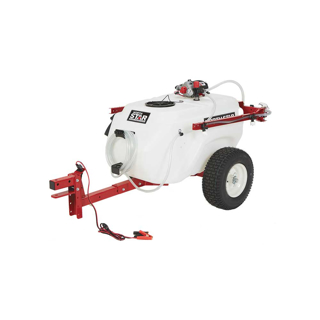

NorthStar Tow Behind Broadcast and Spot Sprayer | 41-Gallon | 4.0 GPM

Discontinued

The 12V NorthStar tow-behind trailer boom broadcast and spot sprayer has a high-flow NorthStar NSQ Series pump that lets you put down chemicals fast and easily. The boom has built-in valves that offer flow control to the left, right, and center sections for precision spraying in perimeter, narrow strip, or full broadcast applications. A regulator with pressure gauge allows you to finely tune spray pressure. Includes deluxe trigger spray gun, 5 nozzles, 7-ft. boom, and 16-ft. hose.

SKU: 282585

Manufacturer Part Number: 282585

Brand: NorthStar

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, inventory, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits

Click Image to Enlarge

Videos

Features + Benefits
Applications
Specifications
Videos

41-gallon capacity polymer tank with extra-thick walls is chemical and UV resistant
Delivers up to 4.0 GPM open flow and 60 PSI max. for quick spraying times
8.3-ft. broadcast pattern
Provides the power you need to reach a vertical spray height of up to 21 ft. max., and a horizontal spray distance of up to 32 ft. max.
NorthStar NSQ Series pump is built with a Santoprene diaphragm and patented DXS-3 Viton valves for performance, chemical compatibility, and durability
Pump automatically turns off when no flow is required to conserve battery power
Oversized electric motor is rated for 100% continuous duty to eliminate downtime
Steel boom has built-in valves with left, right, or center flow control
Built-in regulator with pressure gauge allows you to finely tune spray pressure
Steel cart with 16in. pneumatic tires make easy work of towing over rough terrain
Spring-loaded breakaway boom arms deflect when struck, and fold against the sides of the tank for compact storage
Deluxe trigger spray gun has an adjustable stream-to-cone brass nozzle and 16-ft. hose
Adjustable height tow bar hitch fits a wide range of tow vehicles (ball coupler not included)
Large 7 1/2-in. dia. tank lid for easy filling
Hose wrap on the front of the sprayer and 2 spray gun storage locations keep things tidy when not in use
Bottom-mount tank drain makes rinsing the tank quick and easy
Sump is built into the bottom of the tank for complete fluid draining
8-ft.L wire harness with battery clamps for easy battery connections/disconnections
Bypass flow returns to the tank to keep chemicals mixed well
12V DC power

Ideal for Attaching to ATV Utility Vehicle or Lawn Mower/Garden Tractor

Product Specifications

Equipment Type	Sprayer (Tow-behind)
Broadcast Width	8.3 Ft.
Dry Weight	132 Lbs
Flow	4.0 Gpm
Hose	16 Ft.
Mounting	Tow-behind
Power Supply	12v
Pressure	60 Psi
SKU	282585.NOR
Spray Distance	21 Ft. High, 32 Ft. Long
Spray Gun	Spot, Broadcast
Spray Pattern	Cone/Stream
Tank	41 Gal
Tires	16 In. Pneumatic

Product Specifications

Equipment Type	Sprayer (Tow-behind)
Broadcast Width	8.3 Ft.
Dry Weight	132 Lbs
Flow	4.0 Gpm
Hose	16 Ft.
Mounting	Tow-behind
Power Supply	12v
Pressure	60 Psi
SKU	282585.NOR
Spray Distance	21 Ft. High, 32 Ft. Long
Spray Gun	Spot, Broadcast
Spray Pattern	Cone/Stream
Tank	41 Gal
Tires	16 In. Pneumatic
