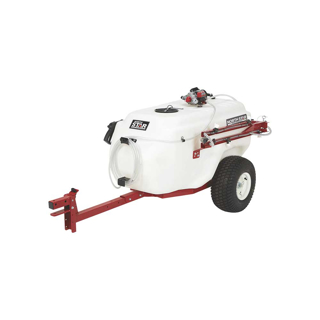

NorthStar Tow Behind Broadcast and Spot Sprayer | 101-Gallon | 7.0 GPM

Discontinued

The 12V NorthStar tow-behind trailer boom broadcast and spot sprayer has a high-flow NorthStar NSQ Series pump that quickly puts down chemicals. The boom has built-in valves that offer flow control to the left, right, and center sections for precision spraying in perimeter, narrow strip, or full broadcast applications. A regulator with a pressure gauge allows for fine-tuning of spray pressure. Includes deluxe trigger spray gun, nine nozzles, 13-ft. boom, and 21-ft. hose.

SKU: 282592

Manufacturer Part Number: 282592

Brand: NorthStar

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, inventory, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits

Click Image to Enlarge

Videos

Features + Benefits
Applications
Specifications
Videos

101-gallon capacity polymer tank with extra-thick walls is chemical and UV resistant
Delivers up to 7.0 GPM open flow and 60 PSI max for quick spraying times
15-ft. broadcast pattern
Provides the power you need to reach a vertical spray height up to 24 ft. max., and a horizontal spray distance of up to 36 ft. max.
NorthStar NSQ Series pump is built with a Santoprene diaphragm and patented DXS-3 Viton valves for performance, chemical compatibility and durability
Pump automatically turns off when no flow is required to conserve battery power
Oversized electric motor is rated for 100% continuous duty to eliminate down time
Steel boom has built-in valves with left, right, or center flow control
Built-in regulator with pressure gauge allows you to finely tune spray pressure
Steel cart with 18-in. pneumatic tires makes easy work of towing over rough terrain
Spring-loaded breakaway boom arms deflect when struck, and fold against the sides of the tank for compact storage
Deluxe trigger spray gun has adjustable stream to cone brass nozzle and 21-ft. hose
Adjustable height tow bar hitch fits a wide range of tow vehicles (ball coupler not included)
Large 7 1/2-in. dia. tank lid for easy filling
Hose wrap on the front of the sprayer and 2 spray gun storage locations keep things tidy when not in use
Bottom mount tank drain makes rinsing the tank quick and easy
Sump is built into the bottom of the tank for complete fluid draining
8-ft.L wire harness with battery clamps for easy battery connections/disconnections
Bypass flow returns to tank to keep chemicals mixed well
12V DC power
