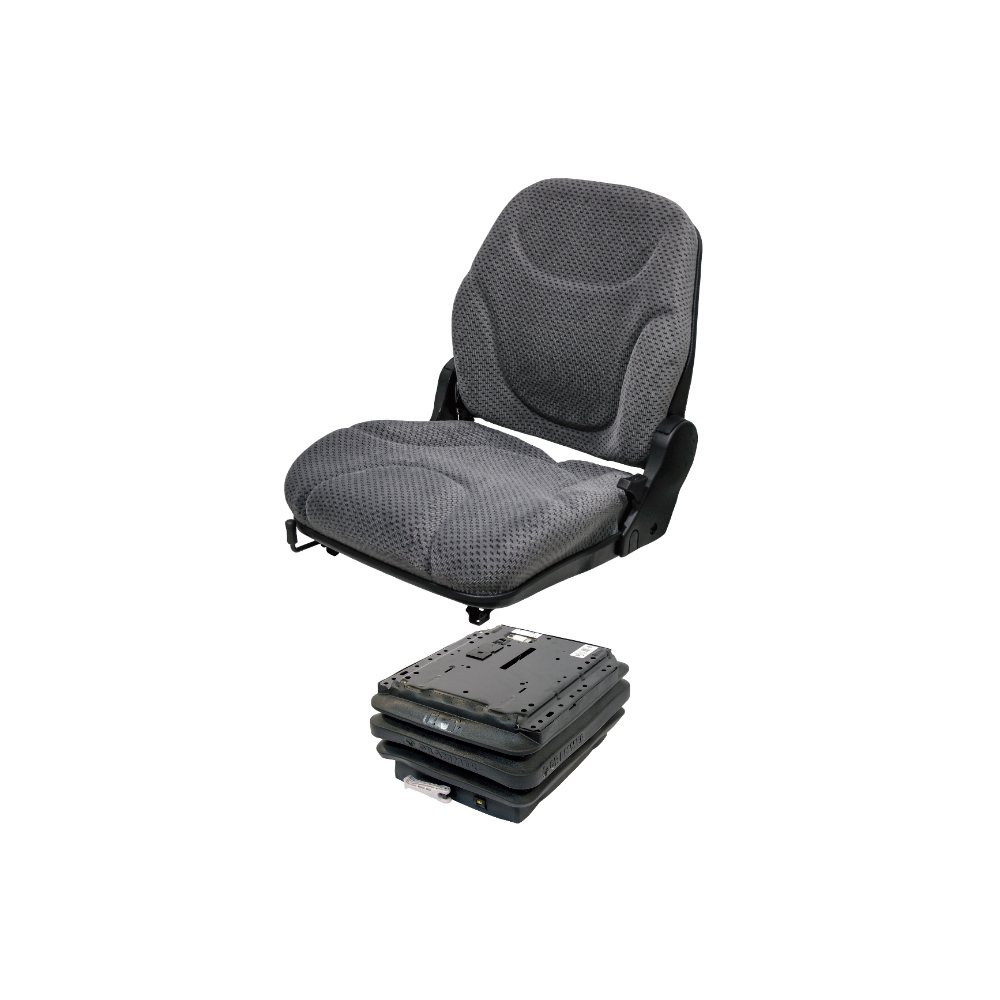

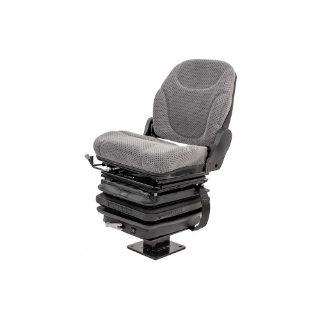

Uni Pro John Deere 310 Series Backhoe 480 Mechanical Susp. Seat Kit | Gray Fabric

The John Deere® 310 series backhoe mechanical suspension seat kit is a high-quality replacement designed to fit select John Deere® backhoe loaders. Engineered for durability and comfort, it replaces the original seat and suspension, providing superior support and enhancing operator comfort during long work hours. The Uni Pro 480 seat features water resistant fabric covering, and an adjustable backrest that folds forward, and reclines from 30 to 85 degrees. The MSG85 mechanical suspension reduces vibration to ensure a comfortable ride.

SKU: 6997

Manufacturer Part Number: 6997

Brand: Uni Pro

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, inventory, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits

Water resistant, heavy-duty gray fabric covering
Adjustable backrest folds forward and reclines from 30 degrees to 85 degrees
Swivels 360° in 10° increments
2 in. non-adjustable tethers for added safety
Adjustable slide rails from 6.75 in. - 13 in. side-to-side for universal fit
Mechanical suspension with frame width of 11.75 in.
Suspension stroke up to 4 in.
Flip handle weight adjustment
Weight indicator with 110 - 285 lb. weight adjustment
Three-position height adjustment of 3 in.
Shock absorber to minimize impact and vibrations
Durable rubber molded suspension cover to keep components free of dirt and dust
Kit includes: Uni Pro 480 seat, MSG85 mechanical suspension, pedestal, swivel, and bolt bag

Features + Benefits
Applications
Specifications
Videos
Documents

Water resistant, heavy-duty gray fabric covering
Adjustable backrest folds forward and reclines from 30 degrees to 85 degrees
Swivels 360° in 10° increments
2 in. non-adjustable tethers for added safety
Adjustable slide rails from 6.75 in. - 13 in. side-to-side for universal fit
Mechanical suspension with frame width of 11.75 in.
Suspension stroke up to 4 in.
Flip handle weight adjustment
Weight indicator with 110 - 285 lb. weight adjustment
Three-position height adjustment of 3 in.
Shock absorber to minimize impact and vibrations
Durable rubber molded suspension cover to keep components free of dirt and dust
Kit includes: Uni Pro 480 seat, MSG85 mechanical suspension, pedestal, swivel, and bolt bag

John Deere® Backhoe Loaders: 310G, 310J, 310SG, 310SJ, 315G, 315SG, 315SJ, 325J, 410G, 410J, 710G, 710J
Replaces John Deere® Part Numbers: AT196561, AT196559, AT377301, AT407315, AT407317
