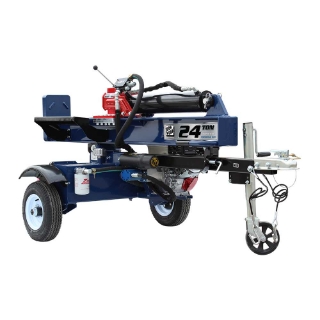

Iron & Oak Log Splitter | 24-Ton | Honda GX160

The Iron & Oak 24-ton log splitter gives you the ability to split both vertically and horizontally. The 24 tons of pressure can split through most logs — ideal for rental properties and homeowners. This commercial-grade model comes standard with bells and whistles such as a log cradle, log dislodger, fenders, and more.

SKU: BHVH2418GX

Manufacturer Part Number: BHVH2418GX

Brand: Iron & Oak

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, inventory, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits

Click Image to Enlarge

Videos

Features + Benefits
Specifications
Videos

Auto latch system locks beam into the horizontal position for safe towing
Enhanced handle to assist with transitioning the unit between horizontal and vertical operating positions
The 4-stage hydraulic filtration system prevents damage to the hydraulic system by removing metal particles and other micro-particles that can contaminate and damage the machine - components include a suction strainer, return line filter, breather cap air filter, and magnetic drain plug
Offset valve for a better operator position
Heavy-duty wedge design with five bolts per side
Halite commercial cylinder seals
Log dislodger and log cradle standard
Larger jack wheel makes it easier to move
Tow cables included

Product Specifications

Equipment Type	Log Splitter (Tow-behind)
Country of Origin	Made in the USA (with US and imported components)
Cycle Time	13 Seconds
Cylinder Size	4 in. x 24 in. Clevis Type, 1.75-in. Rod
Displacement	163cc
Dry Weight	675 Lbs
Engine	Gx160
Engine Brand	Honda
Hitch	2 In.
Hydraulic Capacity	10.0 Gal. System Total (tank 9 Gal. System Total)
Log Length	25 in. Max
Operation	Horizontal And Vertical
Pump Type	11 Gpm Hi-lo 2 Stage
SKU	BHVH2418GX
Splitting Force (Tons)	24 Tons
Splitting Height	32 In.
Tires	4.8 In. X 8.0 In. Highway Rated
Wedge	Heavy-duty, 5 Bolts Per Side

Product Specifications

Equipment Type	Log Splitter (Tow-behind)
Country of Origin	Made in the USA (with US and imported components)
Cycle Time	13 Seconds
Cylinder Size	4 in. x 24 in. Clevis Type, 1.75-in. Rod
Displacement	163cc
Dry Weight	675 Lbs
Engine	Gx160
Engine Brand	Honda
Hitch	2 In.
Hydraulic Capacity	10.0 Gal. System Total (tank 9 Gal. System Total)
Log Length	25 in. Max
Operation	Horizontal And Vertical
Pump Type	11 Gpm Hi-lo 2 Stage
SKU	BHVH2418GX
Splitting Force (Tons)	24 Tons
Splitting Height	32 In.
Tires	4.8 In. X 8.0 In. Highway Rated
Wedge	Heavy-duty, 5 Bolts Per Side

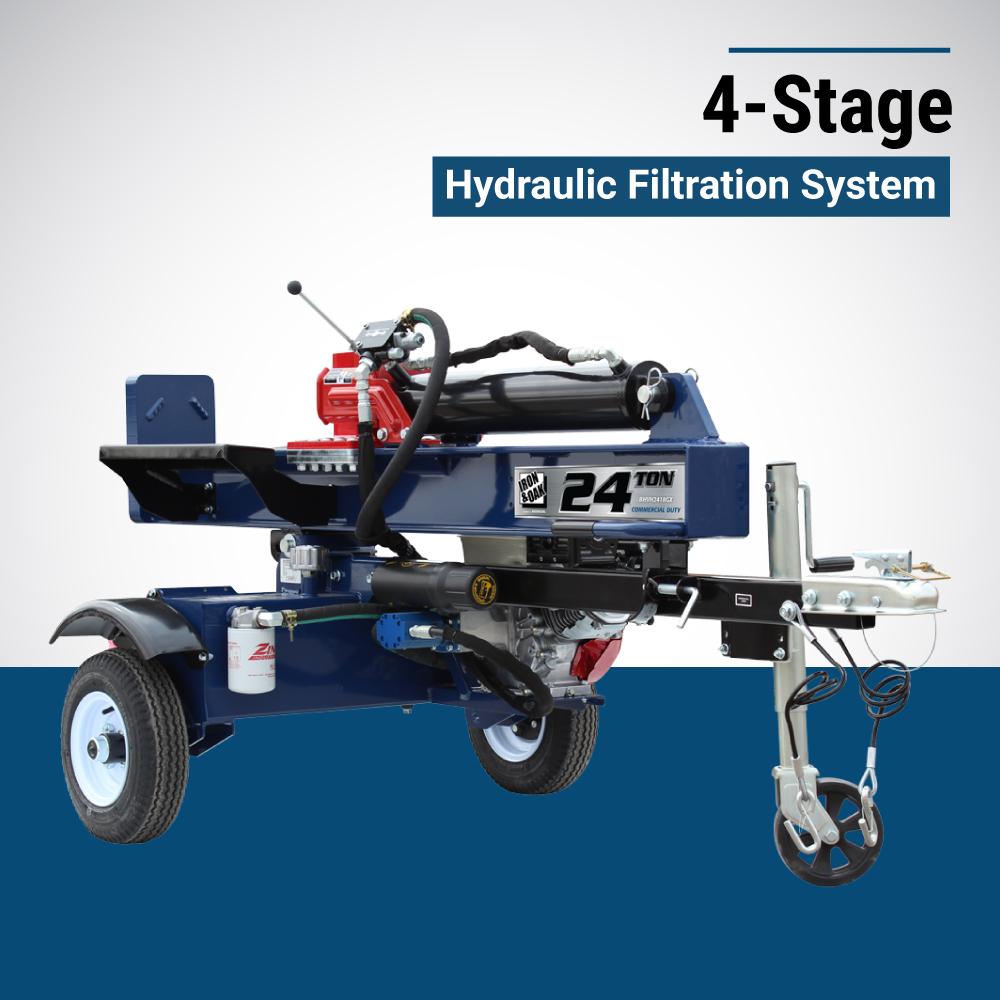

Advanced System Protection

A 4-stage hydraulic filtration system safeguards the hydraulic system by effectively removing metal particles and micro-contaminants, preventing machine damage and ensuring long-lasting performance.

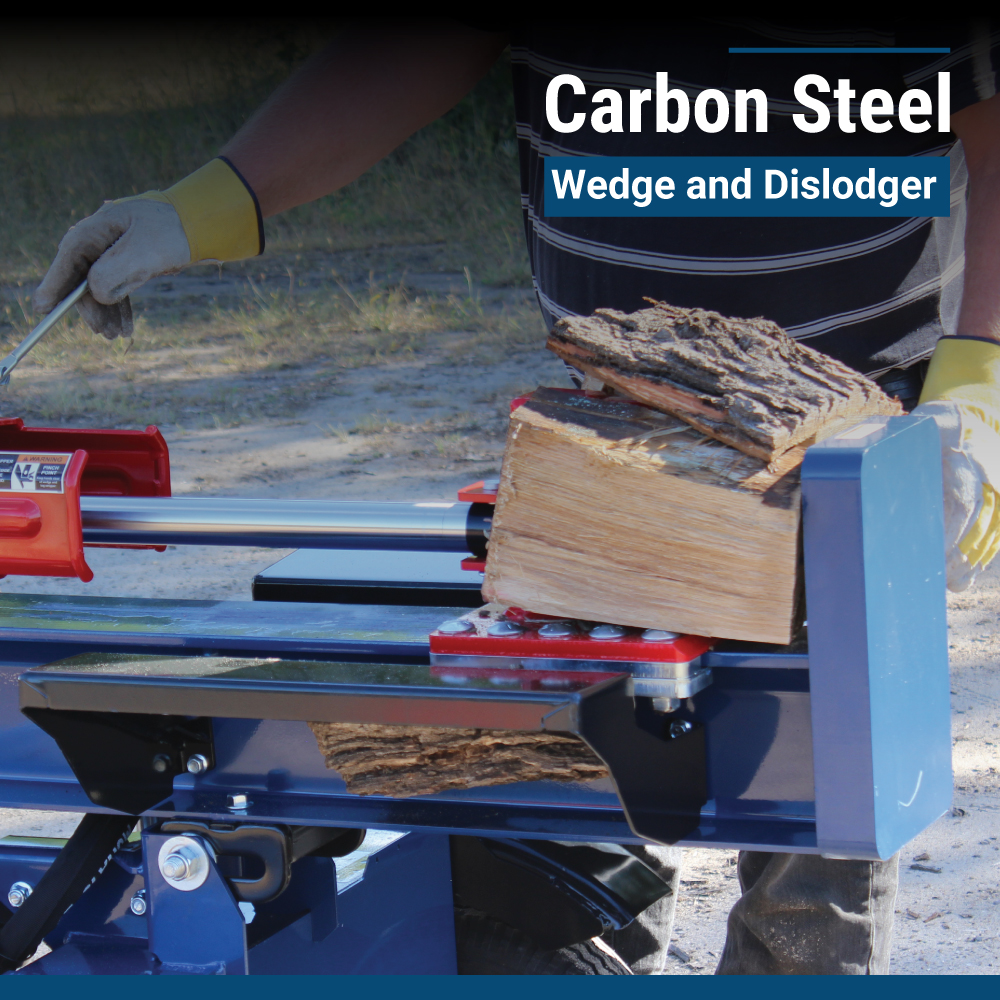

Premium Standard Components

The heavy-duty wedge design features five bolts per side, along with a log dislodger, log cradle, and fenders—all included as standard features.

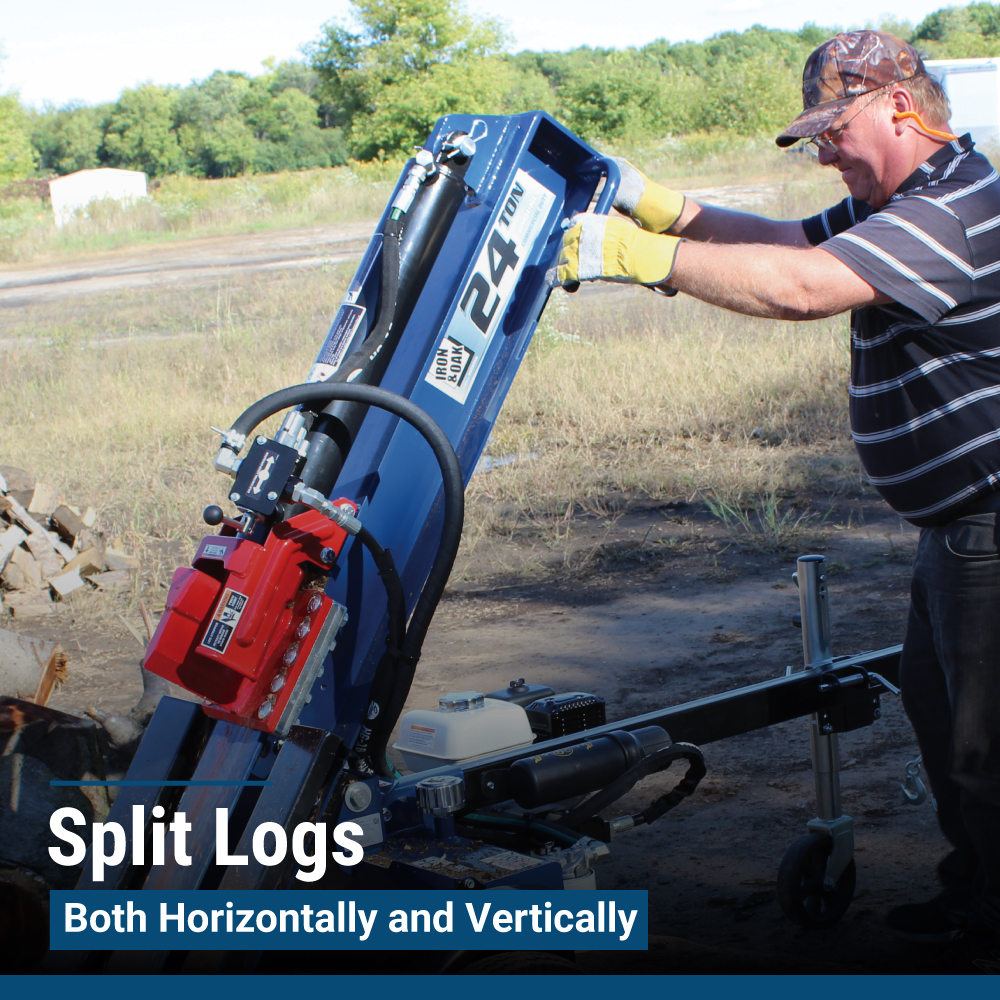

Versatile Splitting Capability

This splitter operates in both vertical and horizontal positions. A reinforced handle streamlines transitions between configurations, making operation smoother and safer.
