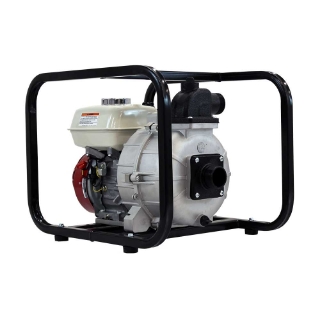

Brave Hi-Pressure Pump | 2 In. Threaded Shaft | Honda GX200

The BravePro 2 in. commercial-grade high-pressure pump is ideal for moving large amounts of clean water. This heavy-duty unit is typically used for irrigation making it perfect for farmers. The commercial-grade pump moves liquids faster so you can get the job done quickly. Hose kits are available.
SKU: BRP650THP2
Manufacturer Part Number: BRP650THP2
Brand: Brave

Features and Benefits

  • Aluminum closed impeller and cast iron volute-die cast aluminum pump
  • Used for fire protection and irrigation
  • Large pump casing increases capacity
  • Built-in check valve for fast priming
  • Removable/replaceable cast iron suction and discharge flanges
  • Discharge port rotates in 90° increments
  • EPDM/EPR seal with carbon and ceramic faces with optional Viton® seals and elastomers
  • One tool serviceability, tool included
  • Includes strainer and rubber foot mounting
  • Max temperature of 180°F
  • 215-ft. total head lift, 66-ft. total suction head
  • Optional wheel kit available
  • Aluminum closed impeller and cast iron volute-die cast aluminum pump
  • Used for fire protection and irrigation
  • Large pump casing increases capacity
  • Built-in check valve for fast priming
  • Removable/replaceable cast iron suction and discharge flanges
  • Discharge port rotates in 90° increments
  • EPDM/EPR seal with carbon and ceramic faces with optional Viton® seals and elastomers
  • One tool serviceability, tool included
  • Includes strainer and rubber foot mounting
  • Max temperature of 180°F
  • 215-ft. total head lift, 66-ft. total suction head
  • Optional wheel kit available
Product Specifications
Equipment TypePump
Discharge Capacity120 Gal/min
Discharge Port Diameter2 In. Npt
Displacement196cc
Dry Weight95 Lbs
EngineGX200
Engine BrandHonda
ImpellerCast Iron
Mechanical Seal (Pump Case/Impeller)EPDM / EPR Seal With Carbon And Ceramic Faces With Optional Viton® Seals And Elastomers
Pressure93 Psi Max
Pump TypeHigh Pressure
Suction Head Lift66 Ft.
Suction Port Diameter2 In. Npt
Total Head Lift215 Ft.
Files Available for Download
Product Specifications
Equipment TypePump
Discharge Capacity120 Gal/min
Discharge Port Diameter2 In. Npt
Displacement196cc
Dry Weight95 Lbs
EngineGX200
Engine BrandHonda
ImpellerCast Iron
Mechanical Seal (Pump Case/Impeller)EPDM / EPR Seal With Carbon And Ceramic Faces With Optional Viton® Seals And Elastomers
Pressure93 Psi Max
Pump TypeHigh Pressure
Suction Head Lift66 Ft.
Suction Port Diameter2 In. Npt
Total Head Lift215 Ft.
