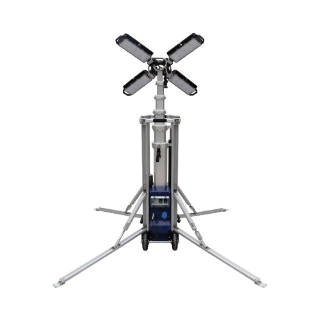

Makinex | Sierra Light Tower | 16.5 Ft | 112,000 Lumens

The Makinex Sierra light tower is a highly portable lighting solution for rapid deployment to construction sites, emergency response, festivals and more. The Sierra tower is easy to transport by hand with its puncture-proof tires and convenient handles, and is only 4 ft. tall when folded for vehicle transport. The tower extends with electrical power to 16.7 ft. tall, with locking stabilizers to ensure wind resistance up to 67 MPH. Each light head can be rotated 360°, with dimmable LEDs to ensure the versatility needed for proper illumination.

SKU: GWG311781

Manufacturer Part Number: PLT-800

Brand: Makinex

Find a Dealer

Become a GNE Customer

Existing GNE customers, please sign in for pricing, inventory, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits

Powerful 112,000 lumen output covers up to 23,681 sq. ft. with light
Ideal for construction, emergency and disaster response, events and festivals, security and surveillance, and many more applications
Convenient size for transport in vehicles and by hand
Electrical mast extends to 16.7 ft. tall, and rotates up to 340°
Locking stabilizers resist winds up to 67 MPH
Each light head rotates 360° for versatility, with dimmable LEDs
Silent and emission-free operation
Compatible with 230V CEE, NEMA, and Schuko plugs

Frequently Asked Questions About This Product

Powerful 112,000 lumen output covers up to 23,681 sq. ft. with light
Ideal for construction, emergency and disaster response, events and festivals, security and surveillance, and many more applications
Convenient size for transport in vehicles and by hand
Electrical mast extends to 16.7 ft. tall, and rotates up to 340°
Locking stabilizers resist winds up to 67 MPH
Each light head rotates 360° for versatility, with dimmable LEDs
Silent and emission-free operation
Compatible with 230V CEE, NEMA, and Schuko plugs

Product Specifications

Equipment Type	Site Lighting
Certification	CE, ETL
Color Temperature	5000K
Dimensions	63 In. L x 32 In. W x 25 In. H
Dimmable	Yes
Electrical Class	Class I
Finish	UV-Stabilized Powder Coating
Fully Extended Height	16.7 Ft.
IK Class	IK08
Illumination	23,681 Sq. Ft.
Input Plug	CEE 230V/ NEMA/ Schuko
IP Rating	IP65 (lighting), IP54 (chassis)
Lumens	112,000 Lumen
Mast Rotation	340°
Noise Level	>5dB
Operating Temperature Range	-22ºF to 113ºF
Operating Voltage	100-305VAC/50Hz-60HZ
Overload Protection	Over Voltage / Over Temp. / Short Circuit
Power	800W
Power Factor	>0.92
Service Life	>100,000 Hours
Storage Temperature Range	-40ºF to 176ºF
Weight	108 Lb.
Wind Resistance	67.1 MPH
