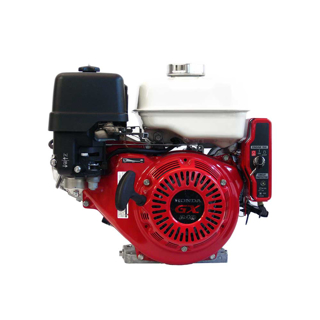

Honda Engine | 270cc | Electric Start | OHV |3-31/64 x 1" Tapped 7/16" 20 UNF | 3 Amp Charge | Oil Alert

SKU: GX240UT2QAE2
Manufacturer part number: GX240UT2QAE2
Brand: Honda
warning iconWARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information visit: www.p65Warnings.ca.gov
Product Specifications
Equipment Type Engines
Air Cleaner Type Dual element
Bore and Stroke (in#) 2.9 x 2.3
Charging Amps 3
Choke System Manual
Compression Ratio 8.5:1
Cooling System Air cooled
Crankshaft Type Q-type
Cylinder Bore Cast iron
Cylinders 1
Engine Displacement 270cc
Engine Type GX Series OHV Commercial-Duty
Fuel Filter Fuel tank filler neck strainer
Fuel Tank Standard (White)
Fuel Tank Capacity (Qt#) 5.6
Fuel Type Gasoline
Item No_ GX240UT2QAE2
Low Oil Alert Yes
Low Oil Shutdown Yes
Lubrication System Forced splash
Max# RPM 3,600
Muffler Included Standard, exhaust pipe protector, spark arrestor, deflector
Net Power Output 7.9 (5.9 kW) at 3,600 RPM
Net Torque (lbs#/Ft) 13.5 (18.3 Nm) at 2,500 RPM
Oil Capacity (Qt#) 1.16
PTO Height 5.25
Shaft Diameter (in#) 1
Shaft Keyway 0.25
Shaft Length (in#) 3.484375
Shaft Output Horizontal
Shaft Rotation (from PTO shaft side) Counterclockwise
Start Type Electric w/recoil backup
Throttle Control Remote (wire)
Pricing and Availability Subject to Change
