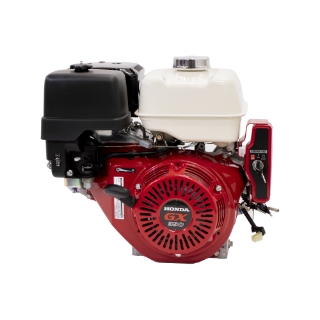

Honda Engine | 389cc | Electric Start| OHV |3-31/64 x 1" Tapped 3/8" 24 UNF | 10 Amp Charge | Oil Alert

Manufacturer part number: GX390UT2QNE2
Brand: Honda
warning iconWARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information visit:
Product Specifications
Equipment Type Engines
Air Cleaner Type Dual element
Bore and Stroke (in#) 3.5 x 2.5
Charging Amps 10
Choke System Manual
Compression Ratio 8.2:1
Cooling System Air cooled
Crankshaft Type Q-type
Cylinder Bore Cast iron
Cylinders 1
Engine Displacement 389cc
Engine Type GX Series OHV Commercial-Duty
Fuel Filter Fuel tank filler neck strainer
Fuel Tank Standard (White)
Fuel Tank Capacity (Qt#) 6.4
Fuel Type Gasoline
Item No_ GX390UT2QNE2
Low Oil Alert Yes
Low Oil Shutdown Yes
Lubrication System Forced splash
Max# RPM 3,600
Muffler Included Silent, exhaust pipe protector, deflector
Net Power Output 13
Net Torque (lbs#/Ft) 19.5 (26.4 Nm) at 2,500 RPM
Oil Capacity (Qt#) 1.16
PTO Height 5.25
Shaft Diameter (in#) 1
Shaft End Tapped 3/8 24
Shaft Keyway 0.25
Shaft Length (in#) 3.484375
Shaft Output Horizontal
Shaft Rotation (from PTO shaft side) Counterclockwise
Start Type Electric w/recoil backup
Throttle Control Remote (wire)
