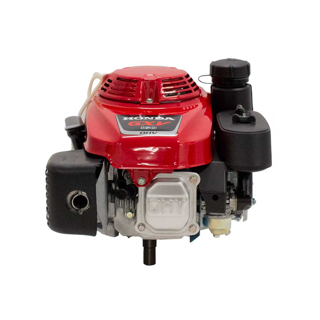

Honda GXV Series | OHV | 163cc | 7/8 In. x 3.15 In. | Recoil | Vertical | Heavy Flywheel

Honda’s GXV series engines are legendary for superior reliability and performance. And there’s no doubt about it: The GXV160 lives up to the legend. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.

SKU: GXV160UH2N1XH

Manufacturer Part Number: GXV160UH2N1XH

Brand: Honda

Where to Buy

Existing GNE customers, please sign in for pricing, availability, and to order.

Buy More, Save More

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits Videos Product Specifications Related Products

Product Specifications

Equipment Type	Engine (Vertical)
Air Cleaner Type	Dual Element
Bearing Type	Ball
Bore	2.7-In.
CARB Approval For California	No
Carburetor	Float
Choke Control	Remote Rod
Compression Ratio	8.0:1
Cooling System	Air Cooled
Crankshaft	N1-Type
Crankshaft Diameter	.875 In. (7/8)
Crankshaft Length	3.15-In.
Crankshaft Output	Vertical
Crankshaft Rotation (From PTO Shaft Side)	Counterclockwise
Cylinder Bore	Cast Iron
Cylinders (Qty.)	1
Engine Displacement	160 CC
Fuel Filter	In-Line
Fuel Tank & Capacity	Yes, 1.9 Qt
Governor System	Centrifugal Mechanical
Ignition System	Transistorized Magneto
Item No_	GXV160UH2N1XH
Lubrication System	Splash
Max. RPM	3600
Mounting Bolt Circle	8-In.
Muffler Included	Yes
Net Power Output	4.3 HP
Net Torque	7.1 Ft-Lbs.
Oil Capacity	0.69 qt
Product Dimensions L X W X H - In. (mm)	16.31 X 14.12 X 13.87-In.
Product Weight	44
Starter Type	Recoil
Stroke	1.8-In.
Throttle Control	Remote Rod
