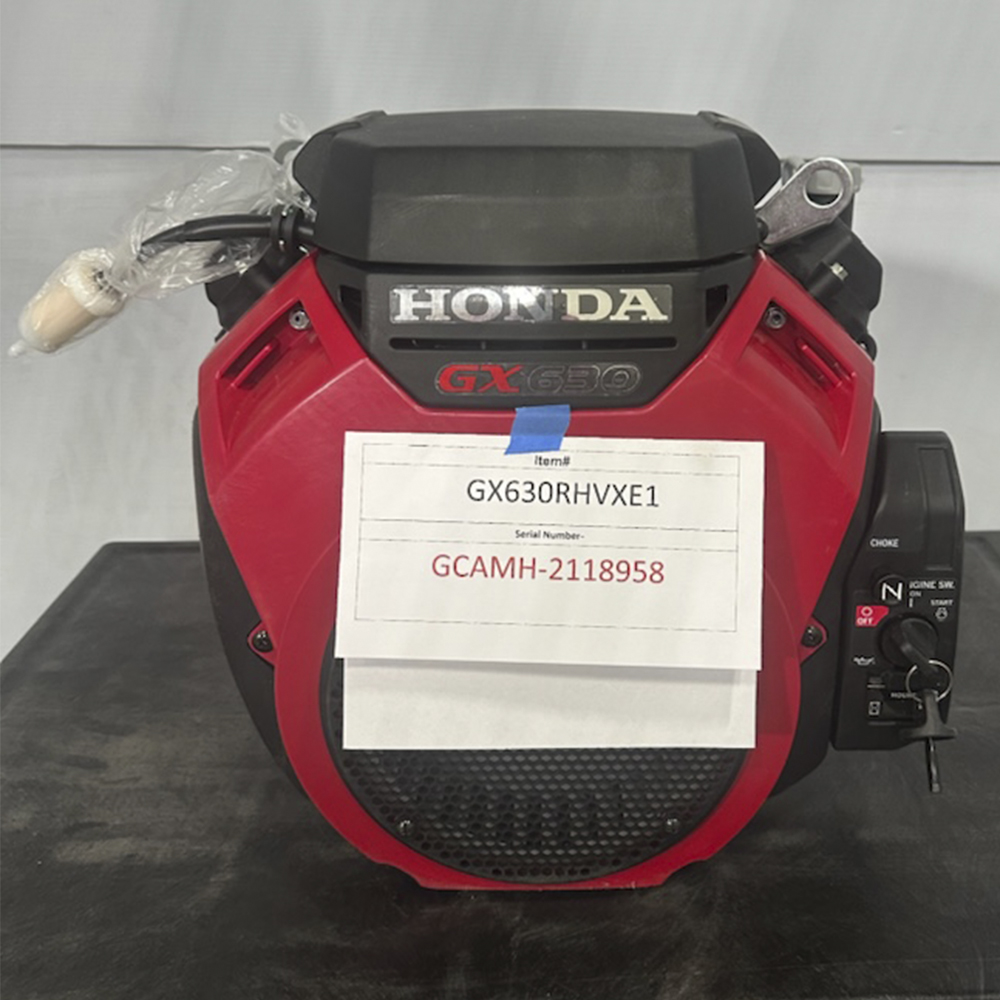

Honda | GX Series | 688cc | 3.64-In. Tapered | Electric | Generator Spec | Out-of-Box Deals

Honda V-Twin engines offer high horsepower, great adaptability, quiet operation, and excellent fuel efficiency.

SKU: R-GX630RHVXE1

Manufacturer Part Number: GX630RHVXE1

Existing GNE customers, please sign in for pricing, inventory, and to order.

Qty	Your Cost ({{unit_of_measure}})	Limited-Time Savings ({{unit_of_measure}})	Now Only ({{unit_of_measure}})

Features and Benefits

Product Specifications

Equipment Type	Engine (Horizontal)
Air Cleaner Type	Dual Element
Bearing Type	Ball
Bore	3.1-In.
CARB Approval For California	No
Carburetor	2-Barrel Butterfly Valve, Internal Vent
Charging System Amps	2.7
Choke Control	Manual
Compression Ratio	9.3:1
Cooling System	Air Cooled
Crankshaft	V-Type
Crankshaft Diameter	Tapered
Crankshaft Length	3.64-In.
Crankshaft Output	Horizontal
Cylinder Bore	Integrated
Cylinders (Qty.)	2
Engine Displacement	688 cc
EPA Compliant	Yes
Fuel Filter	In-Line
Fuel Tank & Capacity	No
Governor System	Mechanical
Ignition System	Electronic, Digital CDI With Variable Ignition Timing
Item No_	GX630RHVXE1
Low Oil Shutdown	Yes
Lubrication System	Forced Lubrication
Max. RPM	3600
Mounting Base Length	7.68-In.
Mounting Base Width	3.39 to 4.65-In.
Mounting Bolt Circle	5, 6.5, 7.75-In.
Muffler Included	No
Net Power Output	20.8 HP
Net Torque	35.6 Ft-Lbs.
Oil Capacity	2.1 Qt
Product Dimensions L X W X H - In. (mm)	15.94-In. (405mm) X 16.14-In. (410mm) X 17.24-In. (438mm)
Product Weight	105
PTO Height	5.25-In.
Starter Type	Electric
Stroke	2.8 In.
Throttle Control	Manual

Product Specifications

Equipment Type	Engine (Horizontal)
Air Cleaner Type	Dual Element
Bearing Type	Ball
Bore	3.1-In.
CARB Approval For California	No
Carburetor	2-Barrel Butterfly Valve, Internal Vent
Charging System Amps	2.7
Choke Control	Manual
Compression Ratio	9.3:1
Cooling System	Air Cooled
Crankshaft	V-Type
Crankshaft Diameter	Tapered
Crankshaft Length	3.64-In.
Crankshaft Output	Horizontal
Cylinder Bore	Integrated
Cylinders (Qty.)	2
Engine Displacement	688 cc
EPA Compliant	Yes
Fuel Filter	In-Line
Fuel Tank & Capacity	No
Governor System	Mechanical
Ignition System	Electronic, Digital CDI With Variable Ignition Timing
Item No_	GX630RHVXE1
Low Oil Shutdown	Yes
Lubrication System	Forced Lubrication
Max. RPM	3600
Mounting Base Length	7.68-In.
Mounting Base Width	3.39 to 4.65-In.
Mounting Bolt Circle	5, 6.5, 7.75-In.
Muffler Included	No
Net Power Output	20.8 HP
Net Torque	35.6 Ft-Lbs.
Oil Capacity	2.1 Qt
Product Dimensions L X W X H - In. (mm)	15.94-In. (405mm) X 16.14-In. (410mm) X 17.24-In. (438mm)
Product Weight	105
PTO Height	5.25-In.
Starter Type	Electric
Stroke	2.8 In.
Throttle Control	Manual
