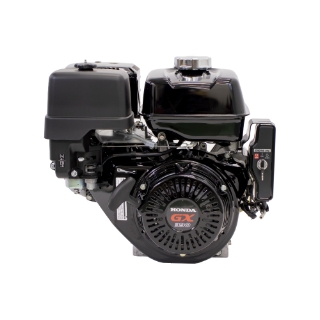

Honda | GX Series | OHV | 389cc | 1 In. X 3.48 In. | Electric | Horizontal | 18-Amp Charge System

With the GX390, you’re looking at some of the best engines in the business. Powerful, reliable, durable, and quiet. Honda’s GX series is power you can trust, and then some.
SKU: GX390UT2XQNR2-BLK
Manufacturer Part Number: GX390UT2XQNR2-BLK
Brand: Honda
Product Specifications
Equipment TypeEngine (Horizontal)
Air Cleaner TypeDual Element
Bearing TypeBall
Bore3.5-In.
CARB Approval For CaliforniaNo
CarburetorButterfly Float Type
Choke ControlManual
Compression Ratio8.2:1
Cooling SystemAir Cooled
CrankshaftQ-Type
Crankshaft Diameter1 In.
Crankshaft Length3.48 In.
Crankshaft OutputHorizontal
Cylinder BoreCast Iron
Cylinders (Qty.)1
Dimensions16 In. L x 18 In. W x 17.6 In. H
Dry Weight70 Lb.
Engine Displacement389 cc
EPA CompliantYes
Fuel FilterIn-Line
Fuel Tank & CapacityYes, 6.4 Qt
Governor SystemCentrifugal Mass
Ignition SystemDigital CDI With Variable Timing
Low Oil AlertYes
Low Oil ShutdownYes
Lubrication SystemSplash
Max. RPM3600
Muffler IncludedYes
Net Power Output11.1 HP
Net Torque19.5 Ft-Lbs.
Oil Capacity1.16 Qt
PTO Height5.25-In.
Starter TypeRecoil
Stroke2.5 In.
Throttle ControlManual
Product Specifications
Equipment TypeEngine (Horizontal)
Air Cleaner TypeDual Element
Bearing TypeBall
Bore3.5-In.
CARB Approval For CaliforniaNo
CarburetorButterfly Float Type
Choke ControlManual
Compression Ratio8.2:1
Cooling SystemAir Cooled
CrankshaftQ-Type
Crankshaft Diameter1 In.
Crankshaft Length3.48 In.
Crankshaft OutputHorizontal
Cylinder BoreCast Iron
Cylinders (Qty.)1
Dimensions16 In. L x 18 In. W x 17.6 In. H
Dry Weight70 Lb.
Engine Displacement389 cc
EPA CompliantYes
Fuel FilterIn-Line
Fuel Tank & CapacityYes, 6.4 Qt
Governor SystemCentrifugal Mass
Ignition SystemDigital CDI With Variable Timing
Low Oil AlertYes
Low Oil ShutdownYes
Lubrication SystemSplash
Max. RPM3600
Muffler IncludedYes
Net Power Output11.1 HP
Net Torque19.5 Ft-Lbs.
Oil Capacity1.16 Qt
PTO Height5.25-In.
Starter TypeRecoil
Stroke2.5 In.
Throttle ControlManual
